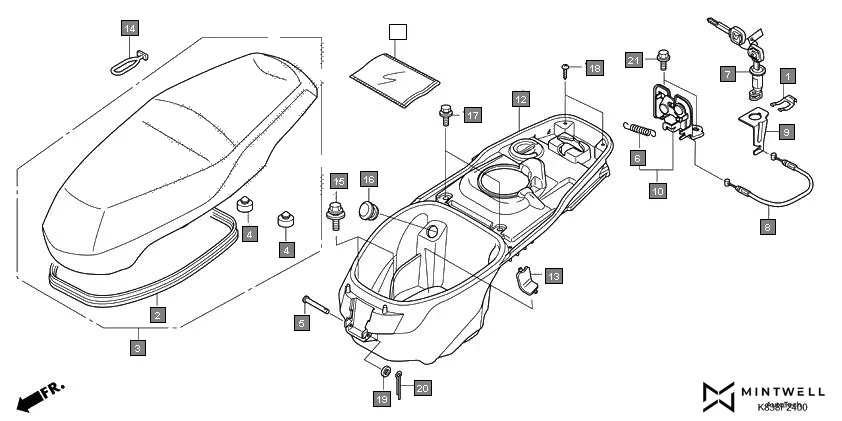

F-24-SEAT/LUGGAGE BOX
HONDACLIQ NVB110H · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 2 | 77115-K83-D00 | RUBBER, SEAL | 1 | |
| 3 | 77200-K83-D01ZA | SEAT COMP., DOUBLE *TYPE1* | 1 | |
| 4 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 5 | 77215-K83-D00 | PIN, SEAT HINGE | 1 | |
| 6 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 7 | 77239-KPL-841 | KEY, SEAT LOCK | 1 | |
| 8 | 77240-K83-D00 | CABLE, SEAT LOCK | 1 | |
| 9 | 77241-KZK-900 | STAY, SEAT LOCK | 1 | |
| 10 | 77250-K83-D00 | CATCH COMP., SEAT | 1 | |
| 11 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 12 | 81250-K83-D00 | BOX, LUGGAGE | 1 | |
| 13 | 81255-KZK-900 | COVER, CARBURETOR MAINTENANCE | 1 | |
| 14 | 89012-KWP-900 | BAND TOOL | 1 | |
| 15 | 90107-KWP-900 | BOLT WASH 8 X 16 | 2 | |
| 16 | 90862-KWP-G00 | PLUG, END | 1 | |
| 17 | 93404-06012-07 | BOLT-WASHER, 6X12 | 2 | |
| 18 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 19 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 20 | 94201-16180 | PIN, SPLIT, 1.6X18 | 1 | |
| 21 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 |
