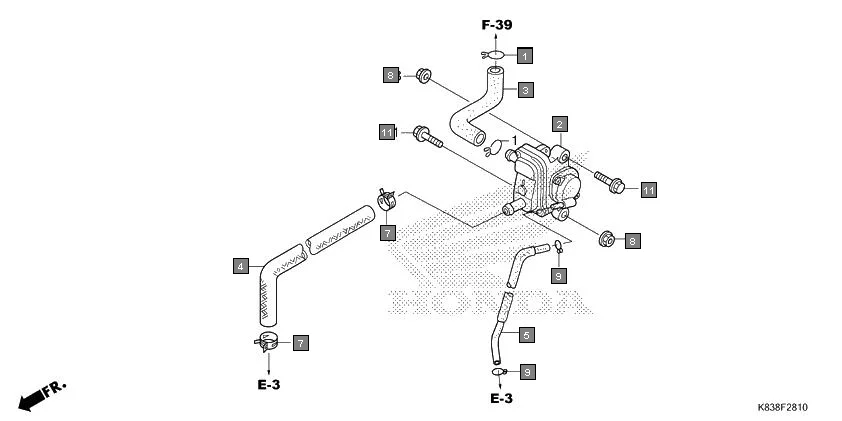

F-28-10-AIR SUCTION VALVE
HONDACLIQ NVB110H · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-611-000 | CLIP, BREATHER TUBE | 2 | |
| 2 | 18600-KWP-901 | VALVE ASSY,AIR SUCTION | 1 | |
| 3 | 18651-KPL-840 | TUBE, AIR SUCTION VALVE | 1 | |
| 4 | 18652-KZK-900 | HOSE, AIR SUCTION VALVE | 1 | |
| 5 | 18653-KWP-900 | TUBE ASV VACUUM | 1 | |
| 7 | 90682-KWP-F00 | CLAMP, CANISTER HOSE | 2 | |
| 8 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 9 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 11 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 |
