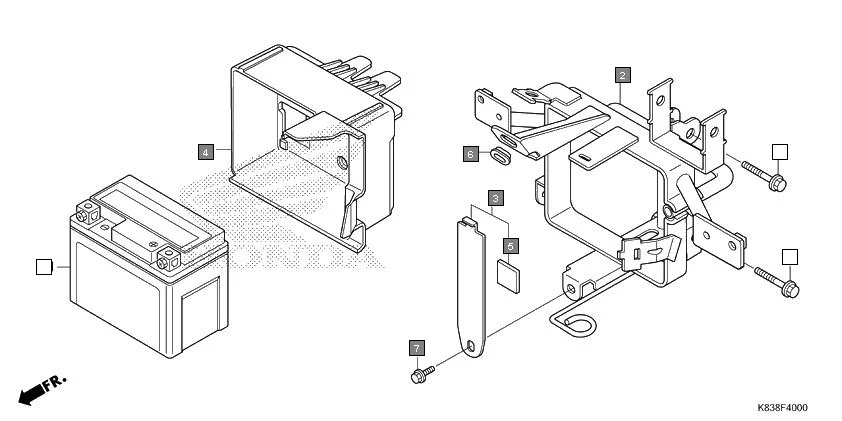

F-40-BATTERY
HONDACLIQ NVB110H · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KVT-941 | BATTERY ASSY.,MF4 | 1 | |
| 1 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 2 | 50330-K83-D00 | TRAY COMP., BATTERY | 1 | |
| 3 | 50341-K83-D00 | BAND COMP., BATTERY | 1 | |
| 4 | 50381-K83-D00 | CASE, BATTERY | 1 | |
| 5 | 50386-KWP-D00 | RUBBER A, BATTERY | 1 | |
| 6 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 7 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 8 | 95701-08040-08 | BOLT, FLANGE, 8X40 | 2 |
