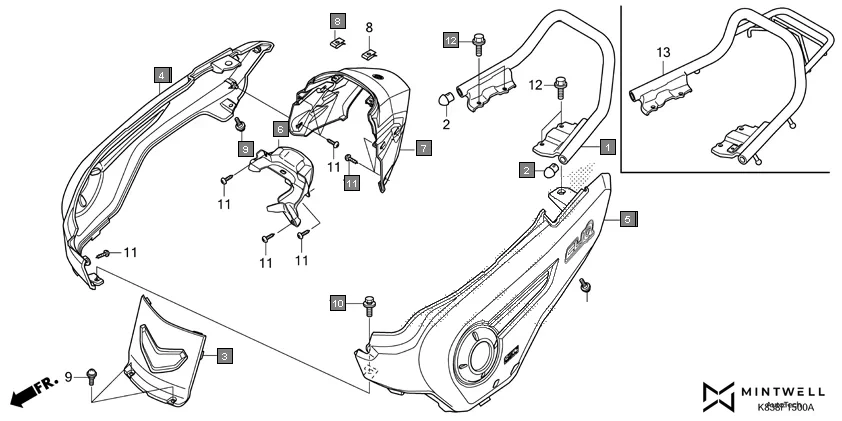

F-15-BODY COVER
HONDACLIQ NVB110H · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K83-D00 | GRIP COMP., RR. | 1 | |
| 2 | 50415-K83-D00 | CAP, RR. GRIP END | 2 | |
| 3 | 80151-K83-D00ZA | COVER, CENTER *NH1* BLACK | 1 | |
| 4 | 83100-K83-D00ZC | COVER SET, R. BODY(WL) *TYPE2* | 1 | |
| 4 | 83100-K83-D00ZD | COVER SET, R. BODY(WL) *TYPE1* | 1 | |
| 4 | 83100-K83-D00ZA | COVER SET, R. BODY(WL) | 1 | |
| 4 | 83100-K83-D00ZB | COVER SET, R. BODY(WL) | 1 | |
| 4 | 83100-K83-D20ZA | COVER SET, R. BODY(WL) *TYPE4*...................... | 1 | |
| 4 | 83100-K83-D20ZB | COVER SET, R. BODY(WL) *TYPE3*...................... | 1 | |
| 4 | 83100-K83-D20ZC | COVER SET, R. BODY(WL) *TYPE2*...................... | 1 | |
| 4 | 83100-K83-D20ZD | COVER SET, R. BODY(WL) *TYPE1*...................... | 1 | |
| 5 | 83200-K83-D00ZC | COVER SET, L. BODY(WL) *TYPE2* | 1 | |
| 5 | 83200-K83-D00ZD | COVER SET, L. BODY(WL) *TYPE1* | 1 | |
| 5 | 83200-K83-D00ZA | COVER SET, L. BODY(WL) | 1 | |
| 5 | 83200-K83-D00ZB | COVER SET, L. BODY(WL) | 1 | |
| 5 | 83200-K83-D20ZA | COVER SET, L. BODY(WL) *TYPE4*...................... | 1 | |
| 5 | 83200-K83-D20ZB | COVER SET, L. BODY(WL) *TYPE3*...................... | 1 | |
| 5 | 83200-K83-D20ZC | COVER SET, L. BODY(WL) *TYPE2*...................... | 1 | |
| 5 | 83200-K83-D20ZD | COVER SET, L. BODY(WL) *TYPE1*........... | 1 | |
| 6 | 83640-K83-D00 | COVER, SEAT LOCK CABLE | 1 | |
| 7 | 83750-K83-D00ZA | COVER, RR. CENTER *NH1* BLACK | 1 | |
| 8 | 90344-KTE-910 | NUT, CLIP, 4MM | 2 | |
| 9 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 10 | 93404-06012-07 | BOLT-WASHER, 6X12 | 1 | |
| 11 | 93903-34380 | SCREW, TAPPING, 4X12 | 10 | |
| 12 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 4 |
