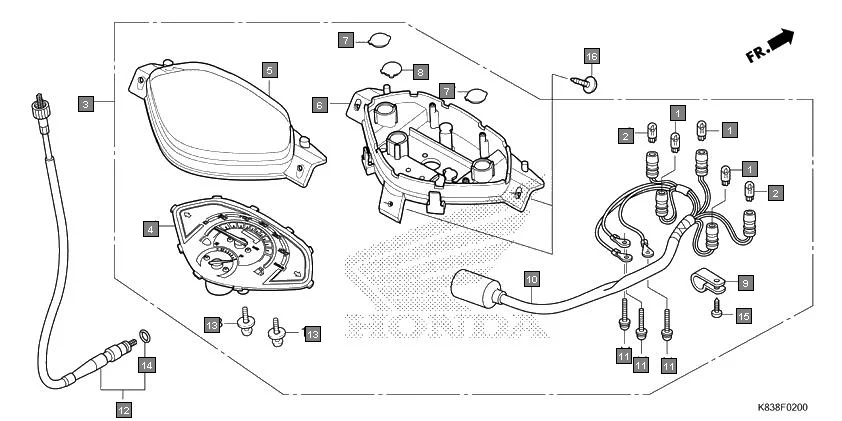

F-2 - METER
HONDA CLIQ NVB110H · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 3 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 3 | 37200-K83-D01 | SPEEDOMETER ASSY.(KPH) | 1 | |
| 4 | 37210-K83-D01 | METER COMP., SPEED & FUEL | 1 | |
| 5 | 37211-KRP-901 | LENS | 1 | |
| 6 | 37212-KWP-901 | CASE | 1 | |
| 7 | 37213-KRP-901 | LENS, PILOT TURN | 2 | |
| 8 | 37214-KPL-901 | LENS, PILOT HIGH BEAM | 1 | |
| 9 | 37215-MB6-831 | CLAMP | 1 | |
| 10 | 37224-K83-D01 | SOCKET COMP. | 1 | |
| 11 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 12 | 44830-K83-D01 | CABLE COMP., SPEEDOMETER | 1 | |
| 13 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 14 | 91352-671-003 | O-RING, 8.5X1.5(ARAI) | 1 | |
| 15 | 93903-24420 | SCREW,TAPPING,4 X 16 | 1 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
