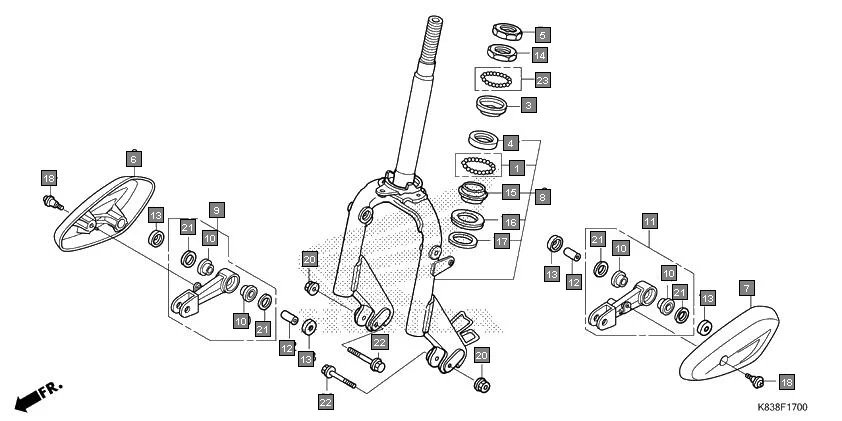

F-17-FRONT FORK
HONDACLIQ NVB110H · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06531-KEM-P00 | BALL SET, STEEL, #8X19 | 1 | |
| 3 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 4 | 50302-268-010 | RACE, STEERING BOTTOM BALL | 1 | |
| 5 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 6 | 51103-KWP-940 | COVER, R. PIVOT | 1 | |
| 7 | 51104-KWP-940 | COVER, L. PIVOT | 1 | |
| 8 | 51110-K83-D00 | FORK SUB ASSY., FR. | 1 | |
| 9 | 51215-KZK-900 | ARM SET, R. PIVOT | 1 | |
| 10 | 51314-KZK-901 | BUSH, PIVOT ARM | 4 | |
| 11 | 51315-KZK-900 | ARM SET, L. PIVOT | 1 | |
| 12 | 51334-KPL-900 | COLLAR, ARM, PIVOT | 2 | |
| 13 | 51336-KZK-900 | CAP, FR. FORK DISTANCE COLLAR | 4 | |
| 14 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 15 | 53212-250-010 | RACE, STRG. BOTTOM CONE | 1 | |
| 16 | 53214-250-000 | DUST, SEAL STRG. (HEAD) | 1 | |
| 17 | 53215-KPL-900 | WASHER, STRG. HEAD DUST SEAL | 1 | |
| 18 | 90102-KPL-900 | SCREW, FORK COVER | 2 | |
| 20 | 90309-KTE-911 | NUT,FLG PT 8MM | 2 | |
| 21 | 91251-GZ5-003 | SEAL, PIVOT ARM | 4 | |
| 22 | 95801-08055-08 | BOLT, FLANGE, 8 X 55 | 2 | |
| 23 | 06530-KEM-P00 | BALL SET, STEEL, #5X26 | 1 |
