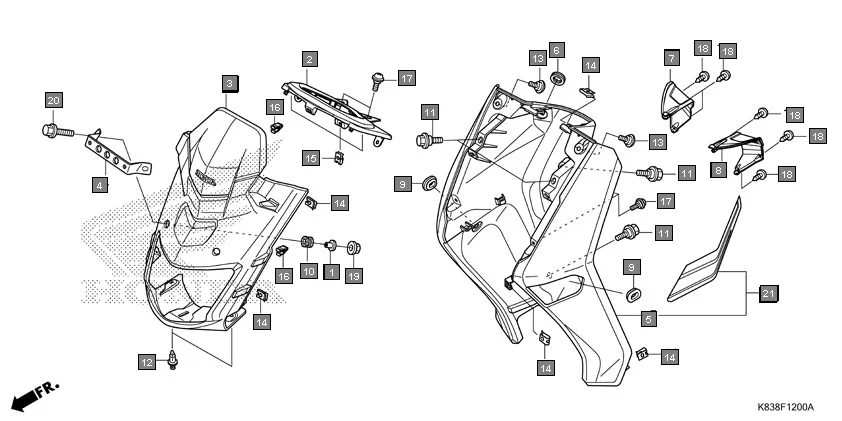

F-12 - FRONT COVER
HONDA CLIQ NVB110H · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61104-428-010 | COLLAR, FR. FENDER(WHITE)..... (FOR RR.) | 2 | |
| 1 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 2 | |
| 2 | 61310-K83-D00ZA | COVER, METER *NH1* BLACK | 1 | |
| 3 | 64300-K83-D00ZA | COVER SET, FR.(WL) *R232* PATRIOT RED | 1 | |
| 3 | 64300-K83-D00ZB | COVER SET, FR.(WL)*PB400R* MOROCCAN BLUE R | 1 | |
| 3 | 64300-K83-D00ZC | COVER SET, FR.(WL)*NH1* BLACK | 1 | |
| 4 | 64303-K83-D00 | STAY, FR. NUMBER PLATE | 1 | |
| 5 | 81131-K83-D00ZA | SHIELD, LEG *NH138* SHASTA WHITE | 1 | |
| 5 | 81131-K83-D00ZB | SHIELD, LEG*NH1* BLACK | 1 | |
| 5 | 81131-K83-D00ZC | SHIELD, LEG *NHB69R* ORCUS GRAY R | 1 | |
| 6 | 81132-KZK-900 | RUBBER, KEY CYLINDER | 1 | |
| 7 | 81150-K83-D00ZA | COVER, R. FR. WINKER *NH138* SHASTA WHITE | 1 | |
| 7 | 81150-K83-D00ZB | COVER, R. FR. WINKER *NH1* BLACK | 1 | |
| 7 | 81150-K83-D00ZC | COVER, R. FR. WINKER *NHB69R* ORCUS GRAY R | 1 | |
| 8 | 81160-K83-D00ZA | COVER, L. FR. WINKER *NH138* SHASTA WHITE | 1 | |
| 8 | 81160-K83-D00ZB | COVER, L. FR. WINKER *NH1* BLACK | 1 | |
| 8 | 81160-K83-D00ZC | COVER, L. FR. WINKER *NHB69R* ORCUS GRAY R | 1 | |
| 9 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 10 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 11 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 12 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 13 | 90150-MBG-000 | SCREW, PAN, 5X15 | 2 | |
| 14 | 90320-GC3-000 | NUT, SPRING, M5 | 10 | |
| 15 | 90344-KRP-900 | NUT CLIP 5MM | 3 | |
| 16 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 3 | |
| 17 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 18 | 93903-25280 | SCREW, TAPPING 5X12 | 6 | |
| 19 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 20 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 2 | |
| 21 | 81130-K83-D20ZC | SHIELD SET, LEG(WL) *TYPE2*...................... | 1 | |
| 21 | 81130-K83-D20ZA | SHIELD SET, LEG(WL) *TYPE4*...................... | 1 | |
| 21 | 81130-K83-D20ZB | SHIELD SET, LEG(WL) *TYPE3*...................... | 1 | |
| 21 | 81130-K83-D20ZD | SHIELD SET, LEG(WL) *TYPE1*...................... | 1 | |
