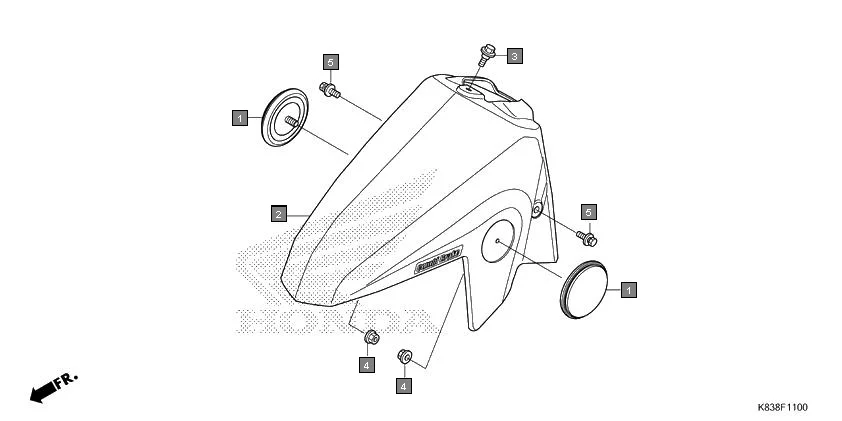

F-11 - FRONT FENDER
HONDA CLIQ NVB110H · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61000-K83-D00ZA | FENDER SET, FR.(WL) *R232* PATRIOT RED | 1 | |
| 2 | 61000-K83-D00ZB | FENDER SET, FR.(WL) *PB400R* MOROCCAN BLUE R | 1 | |
| 2 | 61000-K83-D00ZC | FENDER SET, FR.(WL) *NH1* BLACK | 1 | |
| 3 | 90111-KPL-900 | BOLT, INNER COVER | 1 | |
| 4 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 5 | 93404-06012-07 | BOLT-WASHER, 6X12 | 2 | |
