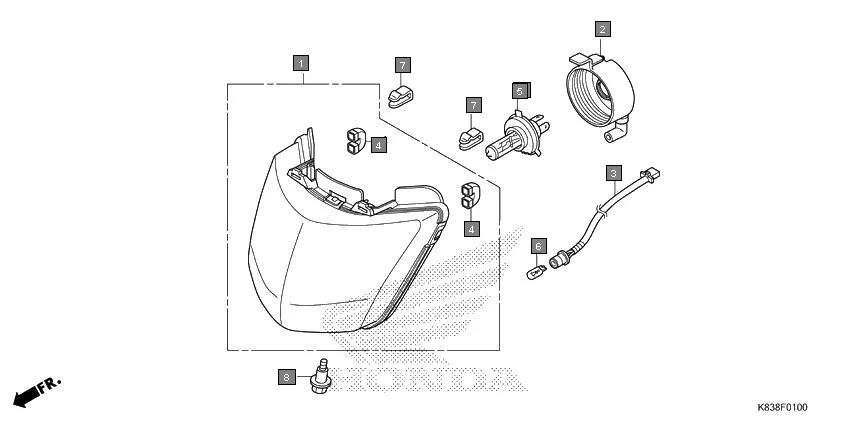

F-1 - HEADLIGHT
HONDA CLIQ NVB110H · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-K14-941 | HEADLIGHT UNIT | 1 | |
| 2 | 33112-K14-601 | COVER, RUBBER | 1 | |
| 3 | 33150-K83-D01 | SUB CORD, HEADLIGHT | 1 | |
| 4 | 33706-K14-601 | TUBE | 2 | |
| 5 | 34901-KTE-740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 | |
| 5 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 6 | 34920-KWA-930 | BULB, WEDGE BASE(T10 12V 3W) | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 8 | 90101-KTE-650 | BOLT, ADJUSTING | 1 | |
