F-48 - MARK

HONDA QC1 EFS9001S · 2 parts

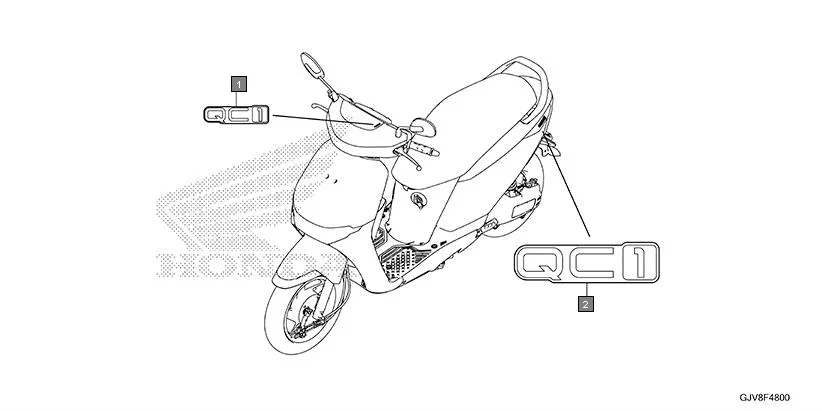

F-48 MARK assembly diagram for HONDA QC1 EFS9001S

Parts in This Assembly (2)

Ref # Part Number Description Qty
1 86831-GJV-D00ZA MARK, METER VISOR*TYPE1* 1
2 86836-GJV-D00ZA MARK, GARNISH*TYPE1* 2
