F-47 - CAUTION LABEL

HONDA QC1 EFS9001S · 4 parts

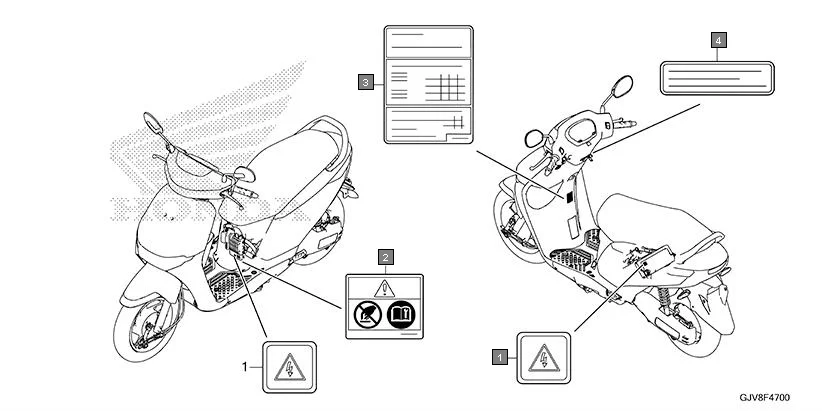

F-47 CAUTION LABEL assembly diagram for HONDA QC1 EFS9001S

Parts in This Assembly (4)

Ref # Part Number Description Qty
1 5E802-GJV-D00 LABEL, WARNING HIGH VOLTAGE (PICTOGRAPH) 2
2 5E901-K4B-D00 LABEL, WARNING MOTOR COVER (PICTOGRAPH) 1
3 87505-K0L-D00 LABEL, TIRE 1
4 87560-MZ0-670 LABEL, DRIVE 1
