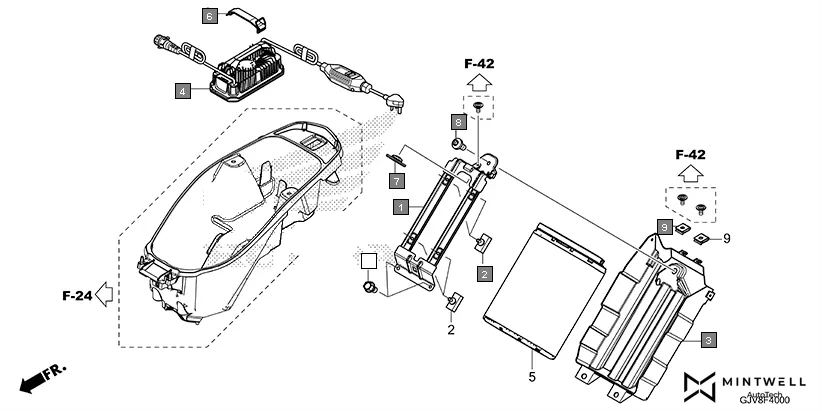

F-40-BATTERY/CHARGE UNIT
HONDAQC1 EFS9001S · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50341-GJV-D00 | BAND COMP., BATTERY | 1 | |
| 2 | 50342-GJV-D00 | RUBBER, BATTERY | 4 | |
| 3 | 50385-GJV-D00 | BOX, BATTERY | 1 | |
| 4 | 5A600-GJV-D01 | CHARGE UNIT | 1 | |
| 5 | 5B200-GJV-D02 | PACK ASSY., BATTERY........... | 1 | |
| 6 | 80123-GJV-D00 | BAND, UTILITY | 1 | |
| 7 | 83618-323-000 | RUBBER, BATTERY BOX | 1 | |
| 8 | 90109-GJV-D00 | BOLT, SOCKET SPECIAL, 8X12 | 1 | |
| 9 | 90320-KTE-600 | NUT, SPRING, 5MM | 2 | |
| 10 | 95701-08014-08 | BOLT, FLANGE, 8X14 | 2 |
