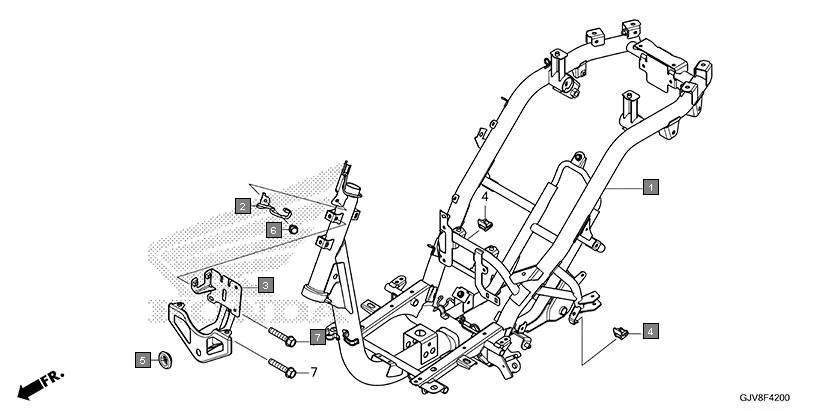

F-42 - FRAME BODY
HONDA QC1 EFS9001S · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-GJV-D00 | BODY COMP., FRAME | 1 | |
| 2 | 50127-K0Y-D00 | GUIDE COMP., CABLE | 1 | |
| 3 | 50330-GJV-D00 | STAY COMP., HEADLIGHT | 1 | |
| 4 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 5 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 6 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 7 | 95801-08040-08 | BOLT, FLANGE, 8X40 | 2 | |
