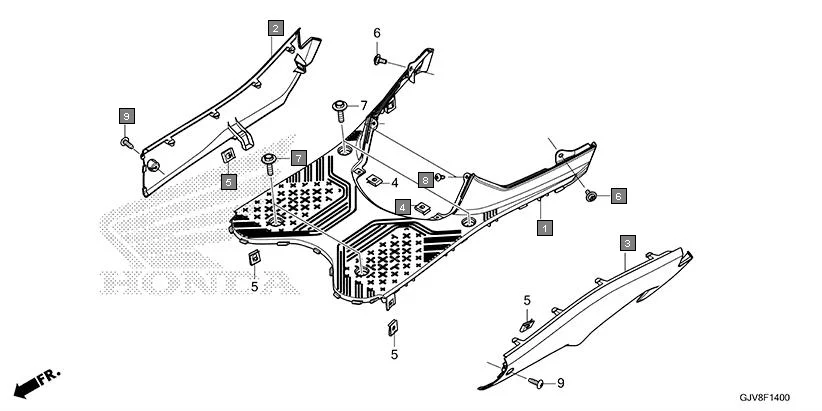

F-14 - FLOOR STEP
HONDA QC1 EFS9001S · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64310-GJV-D00ZA | STEP, FLOOR *NH1* BLACK | 1 | |
| 2 | 64320-GJV-D00ZC | COVER, R. FLOOR SIDE *NH1*BLACK | 1 | |
| 3 | 64330-GJV-D00ZC | COVER, L. FLOOR SIDE *NH1* BLACK | 1 | |
| 4 | 90302-KWW-A00 | NUT, SPRING, 4MM | 2 | |
| 5 | 90344-KRP-900 | NUT CLIP 5MM | 4 | |
| 6 | 91509-K89-V00 | SCREW, PAN, 5X11.5 | 2 | |
| 7 | 93404-06025-07 | BOLT-WASHER, 6X25 | 4 | |
| 8 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 9 | 93903-25380 | SCREW TAPPING 5X16 | 2 | |
