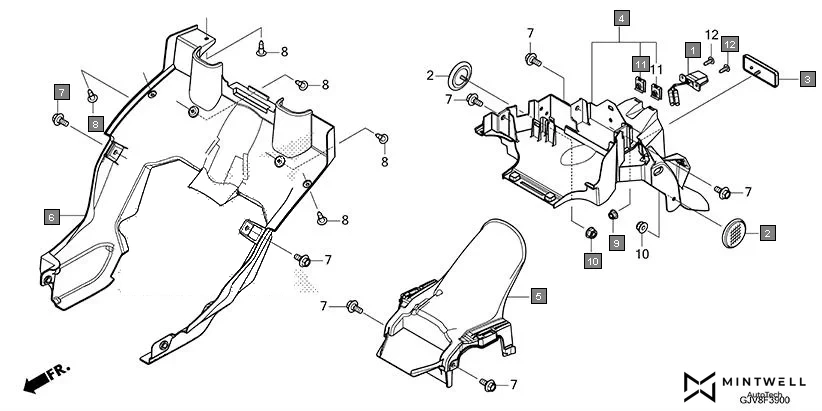

F-39 - REAR FENDER
HONDA QC1 EFS9001S · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33720-K1L-D41 | LIGHT ASSY., LICENSE(FIEM) | 1 | |
| 2 | 33740-K4B-D01 | REFLECTOR, FR. SIDE REFLEX (FOR RR.) | 2 | |
| 3 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 4 | 80105-GJV-D00ZA | FENDER COMP., RR.*NH1* BLACK | 1 | |
| 5 | 80107-GJV-D00ZA | FENDER, RR. INNER *NH1* BLACK | 1 | |
| 6 | 80300-GJV-D00ZA | COVER, SUB FRAME*NH1* BLACK | 1 | |
| 7 | 90111-162-000 | BOLT, FLANGE, 6MM | 7 | |
| 8 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 5 | |
| 9 | 90301-K0P-D91 | NUT, FLANGE, 5MM(PT) (SIMMONDS MARSHALL) | 1 | |
| 9 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 10 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 11 | 90302-KWW-A00 | NUT, SPRING, 4MM | 2 | |
| 12 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
