F-38 - TAILLIGHT

HONDA QC1 EFS9001S · 2 parts

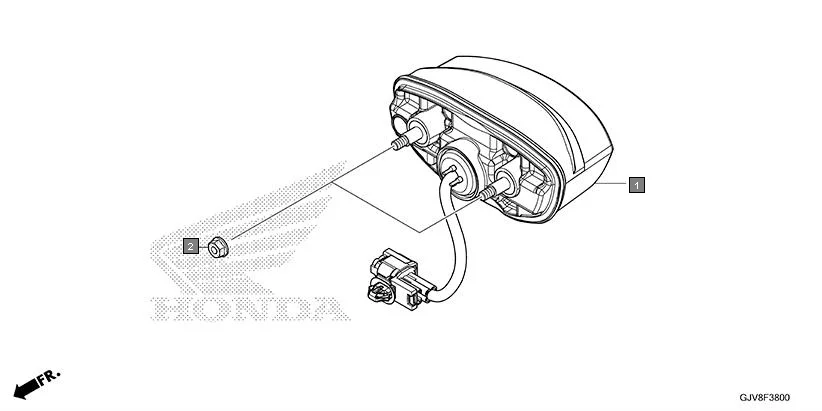

F-38 TAILLIGHT assembly diagram for HONDA QC1 EFS9001S

Parts in This Assembly (2)

Ref # Part Number Description Qty
1 33701-K0A-DB1 LIGHT ASSY., TAIL & STOP 1
2 94050-06080 NUT, FLANGE, 6MM 2
