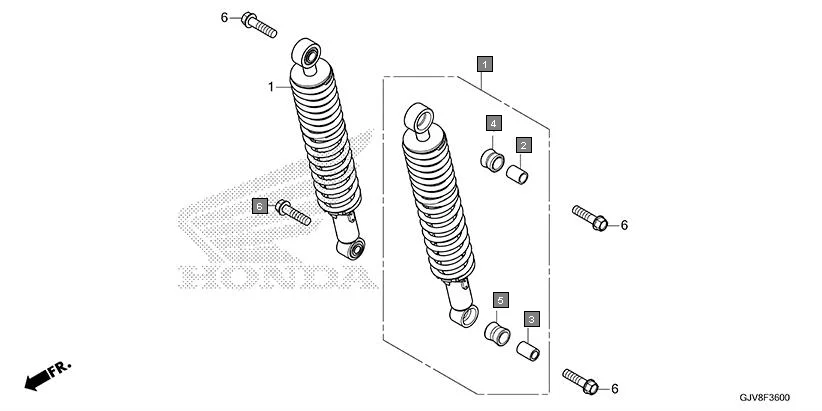

F-36 - REAR CUSHION
HONDA QC1 EFS9001S · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-GJV-D01 | CUSHION ASSY., RR.(ENDURANCE) | 2 | |
| 2 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 3 | 52486-KTE-652 | COLLAR, RUBBER BUSH(ENDURANCE) | 2 | |
| 4 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 2 | |
| 5 | 52496-KTE-652 | BUSH, RUBBER(ENDURANCE) | 2 | |
| 6 | 95801-10040-08 | BOLT, FLANGE, 10X40 | 4 | |
