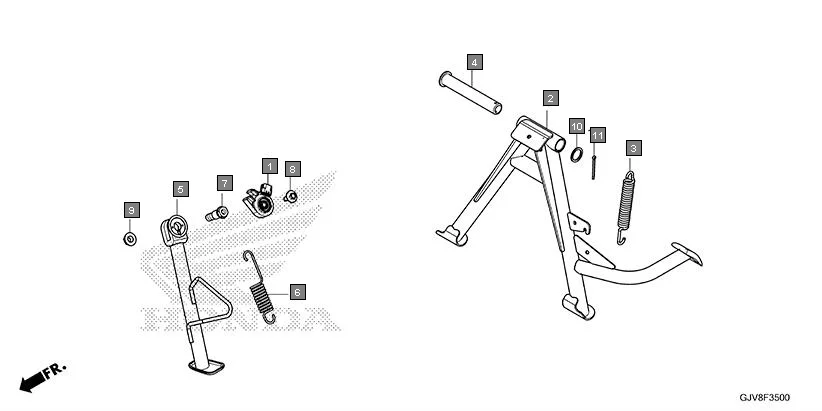

F-35 - STAND
HONDA QC1 EFS9001S · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-K0L-D71 | SWITCH ASSY., SIDE STAND (MINDA) | 1 | |
| 2 | 50500-GJV-D00 | STAND COMP., MAIN | 1 | |
| 3 | 50504-K0L-D00 | SPRING, MAIN STAND | 1 | |
| 4 | 50526-KTE-910 | SHAFT MAIN STAND PIVOT | 1 | |
| 5 | 50530-GJV-D00 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50541-K0L-D00 | SPRING, SIDE STAND | 1 | |
| 7 | 90108-KZL-860 | BOLT, SIDE STAND PIVOT | 1 | |
| 8 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
| 9 | 90304-K0L-D10 | NUT, SIDE STAND | 1 | |
| 10 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 11 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
