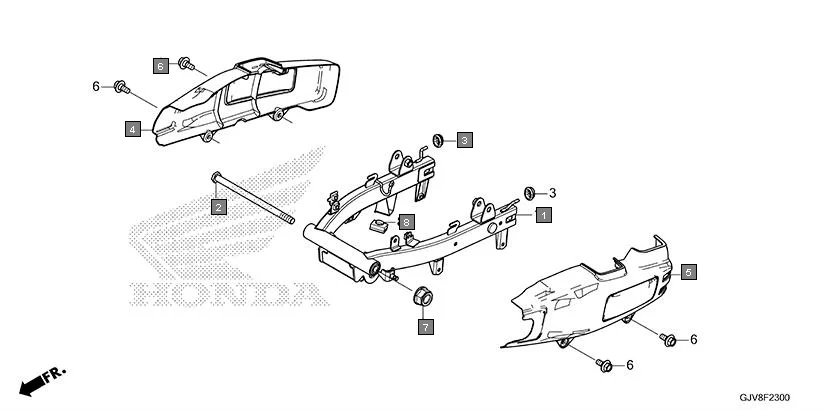

F-23 - SWINGARM
HONDA QC1 EFS9001S · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52100-GJV-D00 | SWINGARM ASSY., RR. | 1 | |
| 2 | 52101-GJV-D00 | BOLT, SWINGARM PIVOT | 1 | |
| 3 | 64413-KSS-C00 | GROMMET, BODY COVER | 2 | |
| 4 | 80108-GJV-D00ZA | COVER, R. SWINGARM *NH1* BLACK | 1 | |
| 5 | 80109-GJV-D00ZA | COVER, L. SWINGARM *NH1* BLACK | 1 | |
| 6 | 90111-162-000 | BOLT, FLANGE, 6MM | 4 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 95011-61000 | RUBBER A, STAND STOPPER | 1 | |
