F-22-50 - REAR TIRE

HONDA QC1 EFS9001S · 4 parts

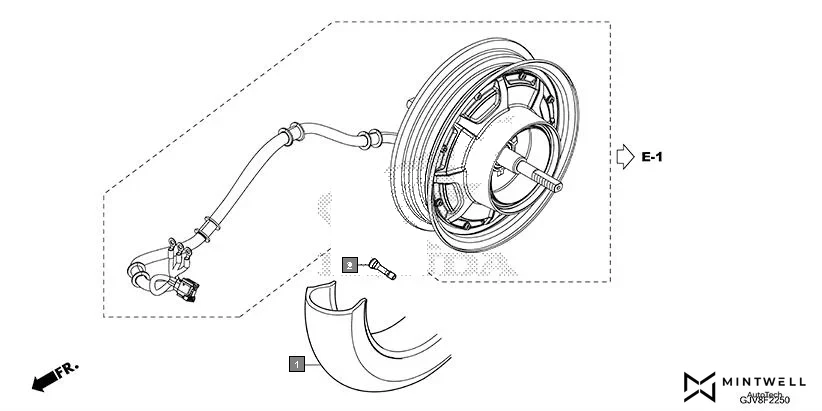

F-22-50 REAR TIRE assembly diagram for HONDA QC1 EFS9001S

Parts in This Assembly (4)

Ref # Part Number Description Qty
1 42711-KWP-F02 TIRE(CEAT)(90/100-10 53J)..... 1
1 42711-KZK-903 TIRE(TVS)(90/100-10 53J)...... 1
1 42711-KZK-904 TIRE(MRF)(90/100-10 53J)...... 1
2 42753-GJV-D01 VALVE, RIM(ACCURA) 1
