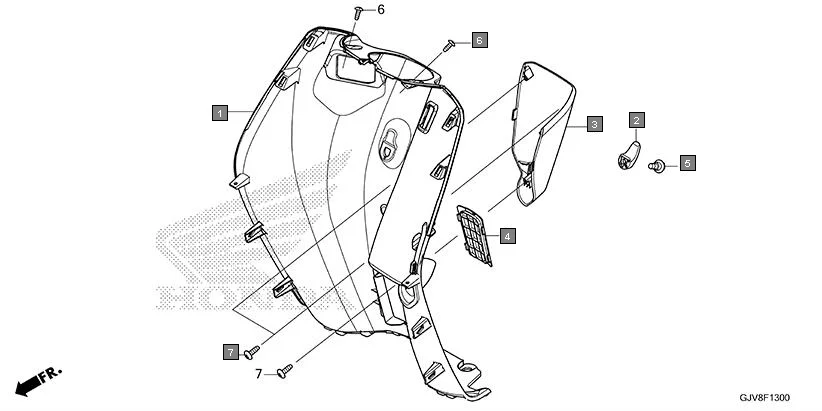

F-13 - INNER COVER
HONDA QC1 EFS9001S · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 81131-GJV-D00ZA | COVER, INNER*NH1* BLACK | 1 | |
| 2 | 81132-KWP-H00ZA | HOOK, LUGGAGE *NH1* BLACK | 1 | |
| 3 | 81133-GJV-D00ZA | COVER, INNER RACK*NH1* BLACK | 1 | |
| 4 | 81252-K0Y-D00ZA | COVER, FRAME NUMBER *NH1* BLACK | 1 | |
| 5 | 90107-KVB-900 | BOLT, SPECIAL, 6MM | 1 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 7 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
