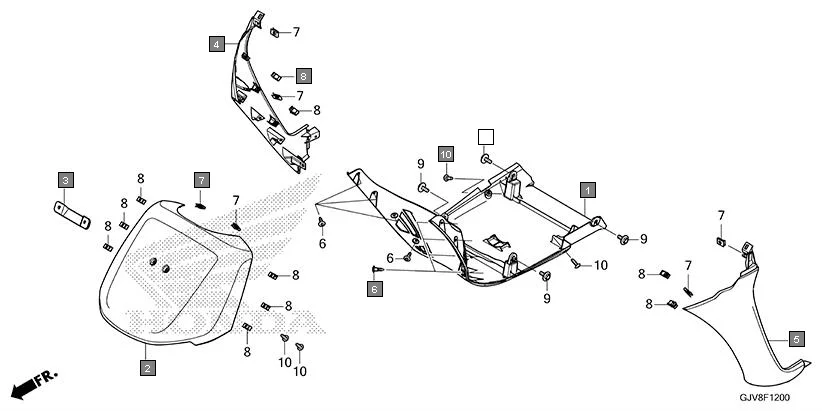

F-12 - FRONT COVER
HONDA QC1 EFS9001S · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-GJV-D00ZA | COVER, UNDER *NH1* BLACK | 1 | |
| 2 | 64301-K4B-D00ZA | COVER, FR. UPPER *PB443P* PEARL SERENITY BLUE | 1 | |
| 2 | 64301-K4B-D00ZB | COVER, FR. UPPER*NHD04P* PEARL MISTY WHITE | 1 | |
| 2 | 64301-K4B-D00ZC | COVER, FR. UPPER*NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 2 | 64301-K4B-D00ZE | COVER, FR. UPPER*B246P* PEARL SHALLOW BLUE | 1 | |
| 2 | 64301-K4B-D00ZH | COVER, FR. UPPER*NHB05P*PEARL IGNEOUS BLACK | 1 | |
| 3 | 64303-K0L-D00 | BRACKET, FR. NUMBER PLATE | 1 | |
| 4 | 64304-GJV-D00ZC | COVER, R. FR. *PB443P*PEARL SERENITY BLUE | 1 | |
| 4 | 64304-GJV-D00ZD | COVER, R. FR.*NHD04P* PEARL MISTY WHITE | 1 | |
| 4 | 64304-GJV-D00ZE | COVER, R. FR.*NHC57M* MAT FOGGY SILVER METALLIC | 1 | |
| 4 | 64304-GJV-D00ZF | COVER, R. FR.*NHB05P*PEARL IGNEOUS BLACK | 1 | |
| 4 | 64304-GJV-D00ZG | COVER, R. FR.*B246P* PEARL SHALLOW BLUE | 1 | |
| 5 | 64305-GJV-D00ZC | COVER, L. FR. *PB443P* PEARL SERENITY BLUE | 1 | |
| 5 | 64305-GJV-D00ZD | COVER, L. FR.*NHD04P* PEARL MISTY WHITE | 1 | |
| 5 | 64305-GJV-D00ZE | COVER, L. FR.*NHC57M*MAT FOGGY SILVER METALLIC | 1 | |
| 5 | 64305-GJV-D00ZF | COVER, L. FR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 5 | 64305-GJV-D00ZG | COVER, L. FR.*B246P* PEARL SHALLOW BLUE | 1 | |
| 6 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 8 | |
| 7 | 90302-KWW-A00 | NUT, SPRING, 4MM | 6 | |
| 8 | 90666-K59-A11 | CLIP, SNAP FITTING(PO) | 10 | |
| 9 | 93404-06016-08 | BOLT, WASH, 6X16 | 4 | |
| 10 | 93903-25380 | SCREW TAPPING 5X16 | 4 | |
