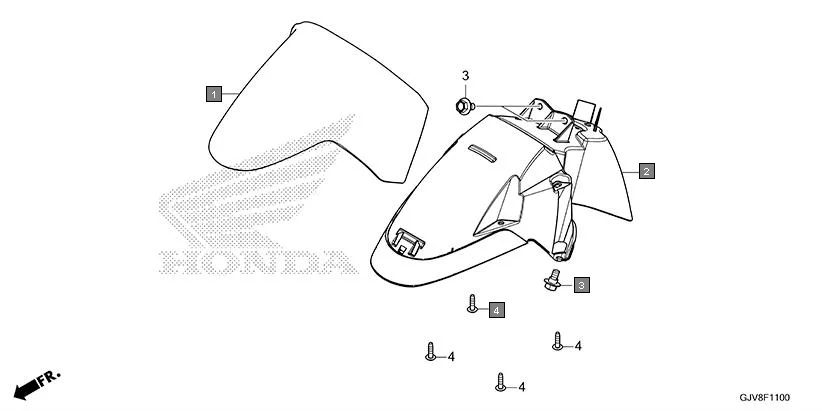

F-11 - FRONT FENDER
HONDA QC1 EFS9001S · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61100-K4B-D00ZA | FENDER A, FR. *PB443P* PEARL SERENITY BLUE | 1 | |
| 1 | 61100-K4B-D00ZB | FENDER A, FR. *NHD04P* PEARL MISTY WHITE | 1 | |
| 1 | 61100-K4B-D00ZC | FENDER A, FR.*NHC57M*MAT FOGGY SILVER METALLIC | 1 | |
| 1 | 61100-K4B-D00ZE | FENDER A, FR.*B246P* PEARL SHALLOW BLUE | 1 | |
| 1 | 61100-K4B-D00ZH | FENDER A, FR.*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 2 | 61120-K4B-D00ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 3 | 90116-KVB-900 | BOLT, FLANGE, 6MM | 3 | |
| 4 | 93903-24480 | SCREW, TAPPING, 4X16 | 4 | |
