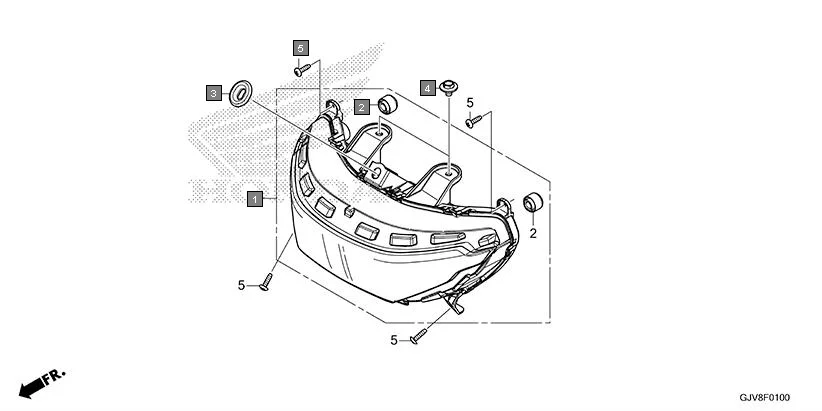

F-1 - FRONT COMBINATION LIGHT
HONDA QC1 EFS9001S · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K4B-D01 | LIGHT ASSY., FR. COMBINATION | 1 | |
| 2 | 33113-MEE-D01 | PIPE, CP | 2 | |
| 3 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 4 | 93404-06010-00 | BOLT-WASHER, 6X10 | 2 | |
| 5 | 93903-24480 | SCREW, TAPPING, 4X16 | 4 | |
