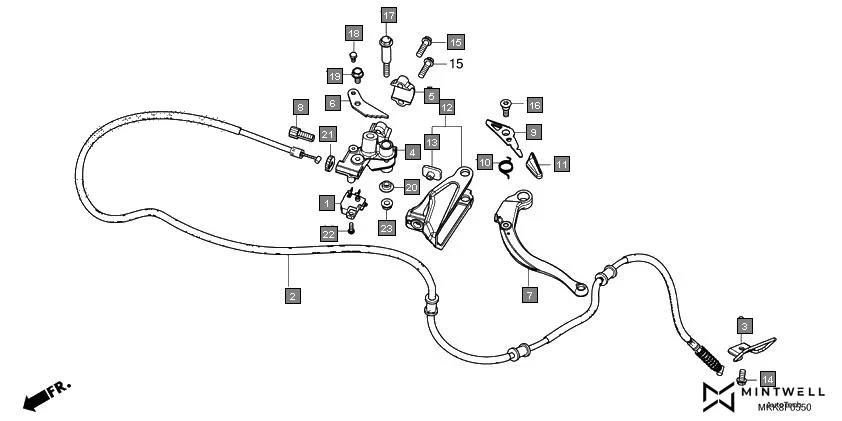

F-5-50 - PARKING BRAKE LEVER
HONDA Africa Twin CRF1000DJ · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 43450-MJP-G81 | CABLE COMP., PARKING BRAKE | 1 | |
| 3 | 43455-MJP-G80 | GUIDE, PARKING CABLE | 1 | |
| 4 | 53172-MJP-G80 | BRACKET, PARKING BRAKE LEVER | 1 | |
| 5 | 53174-KA3-730 | HOLDER, L. LEVER BRACKET | 1 | |
| 6 | 53175-MJP-G80 | STAY, PARKING BRAKE STOPPER | 1 | |
| 7 | 53178-MJP-G80 | LEVER, PARKING BRAKE | 1 | |
| 8 | 53192-MJP-G80 | BOLT, PARKING BRAKE CABLE ADJUST | 1 | |
| 9 | 53193-MJP-G80 | LEVER, PARKING BRAKE LOCK | 1 | |
| 10 | 53194-MJP-G80 | SPRING, PARKING BRAKE LEVER | 1 | |
| 11 | 53195-MJP-G80 | CAP, PARKING BRAKE LEVER | 1 | |
| 12 | 53196-MJP-G60 | HOLDER COMP., L. KNUCKLE | 1 | |
| 14 | 90021-GHB-620 | BOLT, FLANGE, 6X12 | 1 | |
| 16 | 90115-MJP-G80 | BOLT, PARKING BRAKE LEVER PIVOT | 1 | |
| 17 | 90117-MJP-G50 | BOLT, L. HANDLE LEVER | 1 | |
| 18 | 90122-MJP-G80 | BOLT, HEX., 4X8 | 1 | |
| 19 | 90126-MCH-A00 | BOLT, FLANGE, 6X12 | 1 | |
| 21 | 90321-MCJ-000 | NUT, FIXING | 1 | |
| 22 | 93500-04012-0H | SCREW, PAN 4X12 | 1 | |
