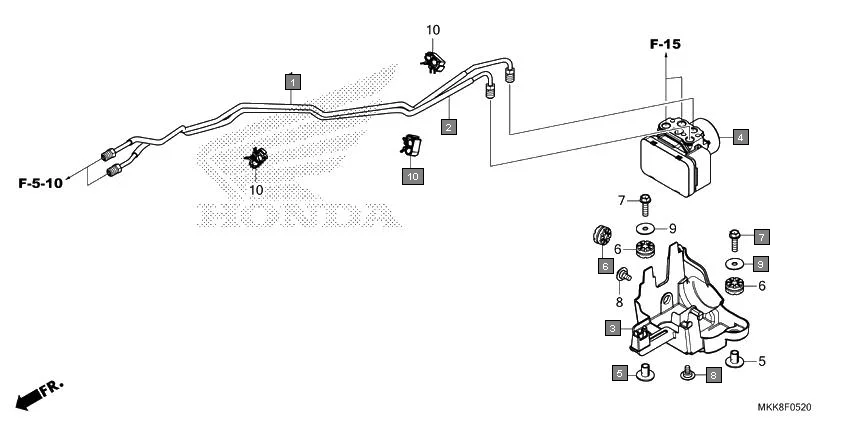

F-5-20 - ABS MODULATOR
HONDA Africa Twin CRF1000DJ · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45126-MKK-D00 | PIPE COMP. B, FR. BRAKE | 1 | |
| 2 | 45127-MKK-D00 | PIPE COMP. C, FR. BRAKE | 1 | |
| 3 | 50345-MKK-D00 | STAY, ABS MODULATOR | 1 | |
| 4 | 57110-MKK-D01 | MODULATOR ASSY.(NISSIN) | 1 | |
| 5 | 61104-428-010 | COLLAR, FR. FENDER(WHITE)..... (FOR RR.) | 2 | |
| 6 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 3 | |
| 7 | 90030-GHB-670 | BOLT, FLANGE, 6X22 | 2 | |
| 8 | 90111-KZZ-900 | BOLT, FLANGE, 6MM | 2 | |
| 9 | 90403-KA3-830 | WASHER, RADIATOR MOUNTING | 2 | |
| 10 | 90661-MEW-921 | CLAMP, BRAKE PIPE(7.0X2) | 3 | |
