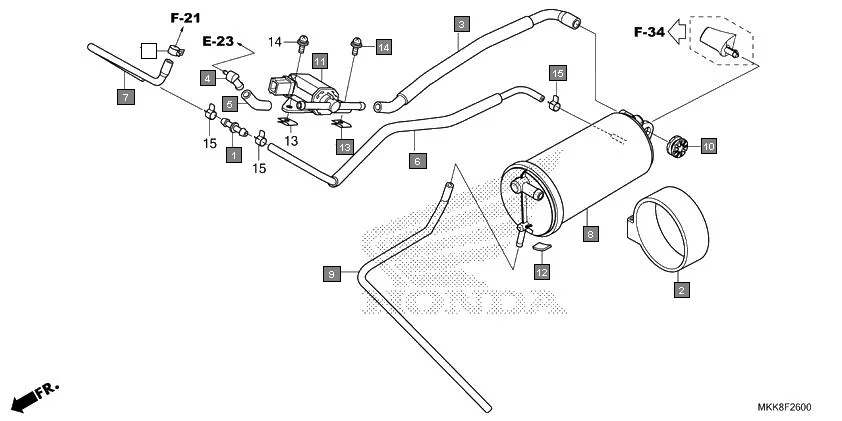

F-26 - CANISTER
HONDA Africa Twin CRF1000DJ · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16958-GJ6-000 | JOINT, FUEL TUBE | 1 | |
| 2 | 17411-MGZ-A00 | RUBBER, CANISTER MOUNT | 1 | |
| 3 | 17414-MJP-A60 | TUBE(PCSV-CANISTER) | 1 | |
| 4 | 17415-KZZ-900 | JOINT, TUBE | 1 | |
| 5 | 17415-MJP-A60 | TUBE, PURGE CONTROL SOLENOID JOINT | 1 | |
| 6 | 17418-MKK-D00 | TUBE, CANISTER | 1 | |
| 7 | 17419-MJP-DA0 | TUBE, FUEL TANK JOINT | 1 | |
| 8 | 17421-MJP-A60 | CANISTER COMP. | 1 | |
| 9 | 17423-MJP-A60 | TUBE, CANISTER DRAIN | 1 | |
| 10 | 33115-KVK-900 | RUBBER, HEADLIGHT | 1 | |
| 11 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 | |
| 12 | 80102-MJS-J70 | RUBBER, RR. FENDER | 1 | |
| 13 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 14 | 93892-05010-08 | SCREW-WASHER, 5X10 | 2 | |
| 15 | 95002-40800-08 | CLAMP D 8.0 TUBE | 3 | |
| 16 | 95002-41000-08 | CLAMP, TUBE(D10) | 1 | |
