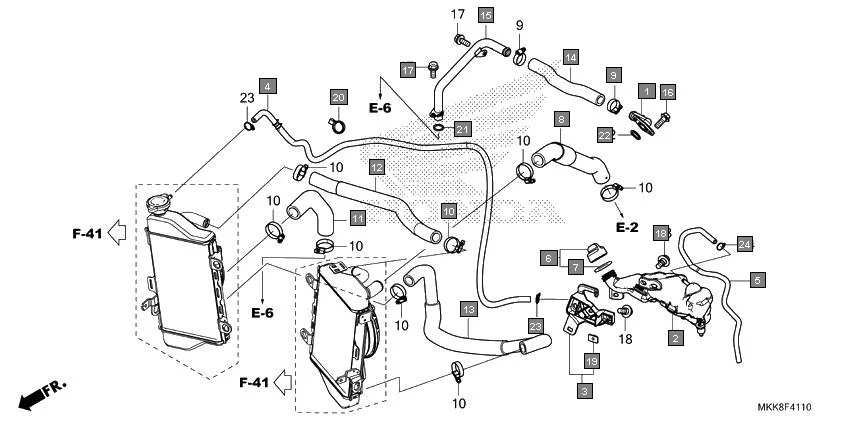

F-41-10-RADIATOR HOSE/WATER PIPE
HONDAAfrica Twin CRF1000DJ · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19061-MJP-G50 | JOINT, WATER BOTTOM | 1 | |
| 2 | 19101-MJP-G50 | TANK, RESERVE | 1 | |
| 3 | 19102-MJP-G50 | STAY, RESERVE TANK | 1 | |
| 4 | 19103-MJP-G50 | TUBE, 5.3X1050 | 1 | |
| 5 | 19104-MJP-G50 | TUBE, RESERVE TANK OVERFLOW | 1 | |
| 6 | 19106-GET-000 | CAP ASSY., RESERVE TANK | 1 | |
| 7 | 19107-GET-000 | PACKING, RESERVE TANK | 1 | |
| 8 | 19501-MKK-D00 | HOSE COMP., RADIATOR UPPER | 1 | |
| 9 | 19505-KS6-700 | CLAMP A, WATER HOSE | 2 | |
| 10 | 19506-KS6-700 | CLAMP B, WATER HOSE | 8 | |
| 11 | 19511-MKK-D50 | HOSE, RADIATOR LOWER | 1 | |
| 12 | 19513-MKK-D00 | HOSE A, RADIATOR | 1 | |
| 13 | 19514-MKK-D00 | HOSE B, RADIATOR | 1 | |
| 14 | 19521-MKK-D50 | HOSE, WATER BOTTOM | 1 | |
| 15 | 19530-MJP-G80 | PIPE COMP., WATER | 1 | |
| 16 | 90006-GHB-630 | BOLT, FLANGE, 6X16(NSHF) | 2 | |
| 17 | 90026-GHB-630 | BOLT, FLANGE, 6X14 | 2 | |
| 18 | 90111-162-000 | BOLT, FLANGE, 6MM | 2 | |
| 19 | 90303-HA0-680 | NUT, SPECIAL, 6X7 | 1 | |
| 20 | 90690-GHB-711 | CLIP, CABLE, 20MM | 1 | |
| 21 | 91301-MY9-003 | O-RING, 15X2.5 | 1 | |
| 22 | 91304-HN8-003 | O-RING, 17.4X2.9 | 1 | |
| 23 | 95002-02100 | CLIP, B-10 TUBE | 2 | |
| 24 | 95002-50000 | CLIP, C9 TUBE | 1 |
