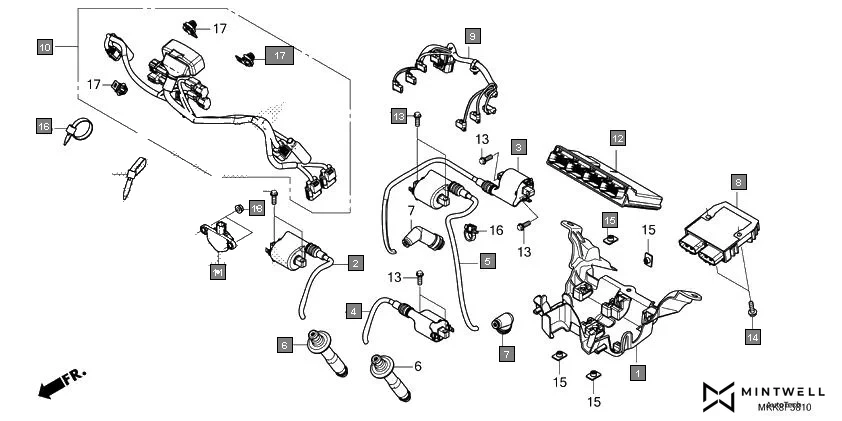

F-38-10 - SUB HARNESS/IGNITION COIL
HONDA Africa Twin CRF1000DJ · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19125-MKK-D00 | TRAY, IGNITION COIL | 1 | |
| 2 | 30510-MKK-D01 | COIL COMP., IGNITION(TOP-1) | 1 | |
| 3 | 30520-MKK-D01 | COIL COMP., IGNITION(SIDE-2) | 1 | |
| 4 | 30530-MKK-D01 | COIL COMP., IGNITION(TOP-2) | 1 | |
| 5 | 30540-MKK-D01 | COIL COMP., IGNITION(SIDE-1) | 1 | |
| 6 | 30700-HL4-A01 | CAP ASSY., NOISE SUPPRESSOR | 2 | |
| 7 | 30701-MJP-G51 | CAP ASSY., NOISE SUPPRESSOR | 2 | |
| 8 | 31600-MGZ-J01 | RECTIFIER ASSY., REGULATOR | 1 | |
| 9 | 32102-MKK-D00 | SUB HARNESS, IGNITION | 1 | |
| 10 | 32103-MKK-D50 | HARNESS, FR. SUB WIRE | 1 | |
| 11 | 35160-MGS-D31 | SENSOR ASSY., BANK ANGLE | 1 | |
| 12 | 38770-MKK-H62 | PGM-FI UNIT | 1 | |
| 13 | 90020-GHB-660 | BOLT, FLANGE, 6X20 | 8 | |
| 16 | 90652-KT1-771 | BAND, WIRE | 3 | |
| 18 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
