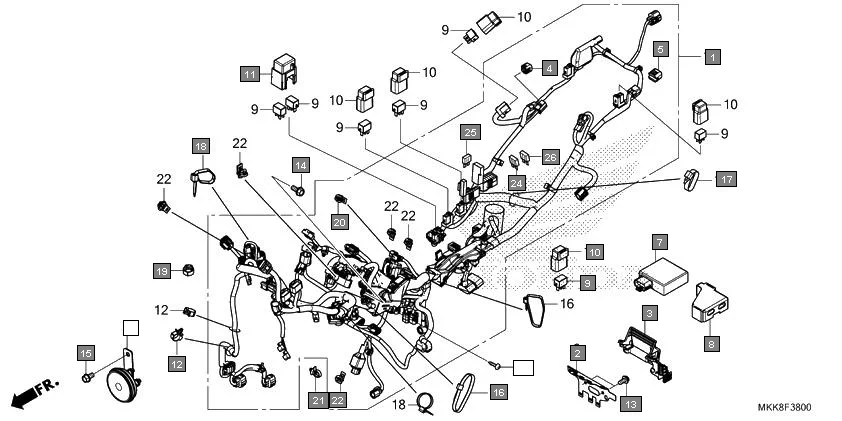

F-38 - WIRE HARNESS
HONDA Africa Twin CRF1000DJ · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-MKK-D50 | HARNESS, WIRE | 1 | |
| 2 | 32155-MJP-G50 | STAY, HARNESS CLIP | 1 | |
| 3 | 32159-MJP-G50 | COVER, COUPLER | 1 | |
| 4 | 32606-GEV-761 | CAP, DUMMY(4P)(RED) | 1 | |
| 5 | 32606-MEL-D01 | CAP, DUMMY(6P)(NATURAL) | 1 | |
| 6 | 38100-MJP-MF0 | HORN ASSY. | 1 | |
| 7 | 38301-MKK-F01 | RELAY COMP., WINKER(LED) | 1 | |
| 8 | 38306-MGH-640 | CUSHION, WINKER RELAY | 1 | |
| 9 | 38501-KWN-901 | RELAY COMP., POWER (MICRO ISO 4P)(OMRON) | 7 | |
| 10 | 38506-KVS-600 | SUSPENSION, POWER RELAY | 5 | |
| 11 | 38506-KZZ-900 | COVER, RELAY(2P) | 1 | |
| 12 | 53781-SE0-952 | CLIP, RETURN HOSE | 2 | |
| 13 | 90025-GHB-620 | BOLT, FLANGE, 6X12 | 2 | |
| 15 | 90036-GHB-630 | BOLT, FLANGE, 8X14 | 1 | |
| 16 | 90620-SB2-003 | BAND, WIRE HARNESS | 2 | |
| 20 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 1 | |
| 21 | 91541-S0A-003 | CLIP BAND HARN | 1 | |
| 23 | 93913-25280 | SCREW TAPPING 5 X 12 | 1 | |
| 24 | 98200-41000 | FUSE, MINI(10A) | 8 | |
| 26 | 98200-42000 | FUSE, MINI(20A) | 3 | |
