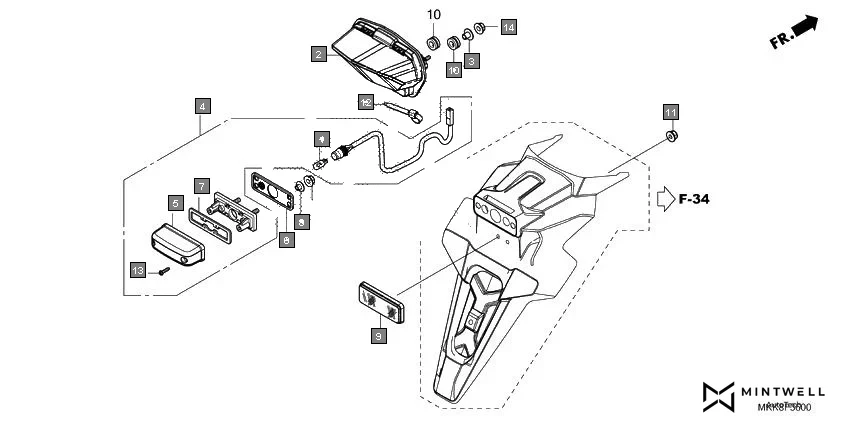

F-36 - TAILLIGHT/LICENSE LIGHT
HONDA Africa Twin CRF1000DJ · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-SA0-741 | BULB(12V 5W)(STANLEY) | 1 | |
| 2 | 33701-MJP-G52 | TAILLIGHT UNIT | 1 | |
| 3 | 33705-MKK-D00 | COLLAR, TAILLIGHT | 2 | |
| 4 | 33720-MFA-D01 | LIGHT ASSY., LICENSE(12V 5W) | 1 | |
| 5 | 33721-GET-671 | COVER COMP., LICENSE | 1 | |
| 6 | 33728-MFL-000 | RUBBER, LICENSE LIGHT | 1 | |
| 7 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 8 | 33731-MJ0-940 | COLLAR, REGULATOR MOUNTING | 2 | |
| 9 | 33741-MS6-921 | REFLECTOR, REFLEX(STANLEY) | 1 | |
| 10 | 80101-310-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 11 | 90301-MG8-000 | NUT, FLANGE, 5MM(FUSE RASHI) | 1 | |
| 12 | 90650-KV6-003 | BAND, WIRE, 95MM | 1 | |
| 13 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 14 | 94050-05000 | NUT FLANGE, 5 MM | 4 | |
