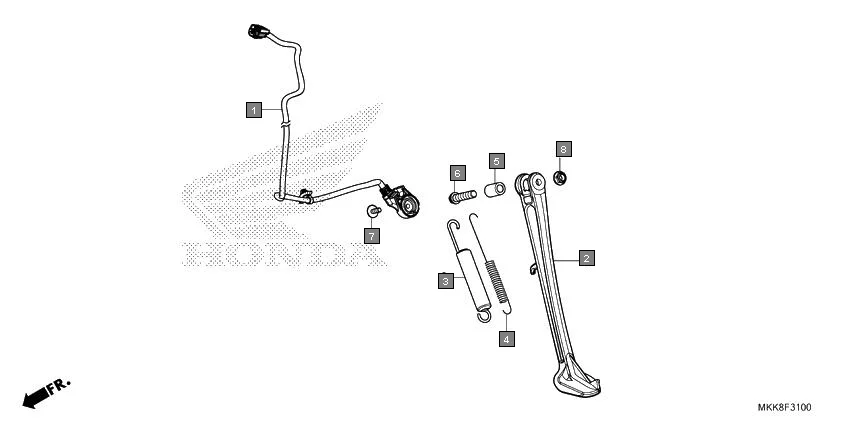

F-31 - SIDE STAND
HONDA Africa Twin CRF1000DJ · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-MJP-G51 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50530-MKK-D00 | BAR, SIDE STAND | 1 | |
| 3 | 50531-GGK-000 | SPRING ASSY., SIDE STAND | 1 | |
| 4 | 50542-KCM-620 | SUB SPRING, SIDE STAND | 1 | |
| 5 | 50601-MJP-G50 | COLLAR, SIDE STAND | 1 | |
| 6 | 90105-MJP-G50 | BOLT, SIDE STAND PIVOT | 1 | |
| 7 | 90147-MCE-950 | BOLT, SPECIAL, 6X16 | 1 | |
| 8 | 90203-MF9-710 | NUT, SIDE STAND | 1 | |
