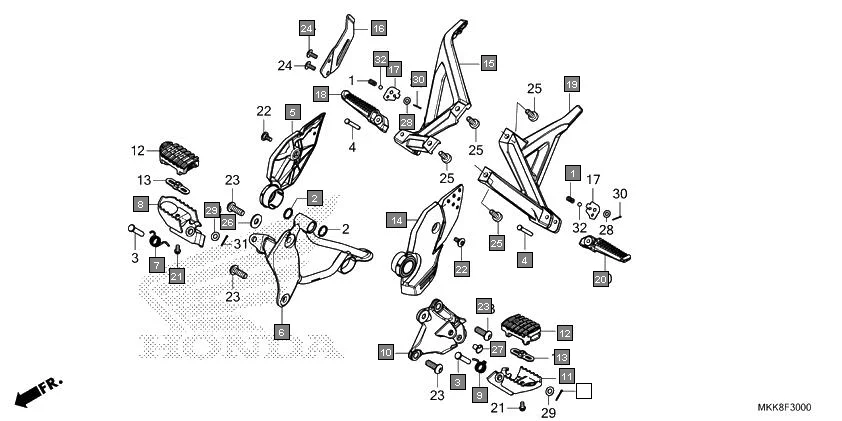

F-30 - STEP
HONDA Africa Twin CRF1000DJ · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 2 | 46525-KK0-003 | DUST SEAL, 17X20X2.5 | 2 | |
| 3 | 50603-KA3-710 | PIN, STEP JOINT | 2 | |
| 4 | 50603-MFJ-D00 | PIN, STEP JOINT | 2 | |
| 5 | 50607-MJP-G50 | GUARD, R. HEEL | 1 | |
| 6 | 50615-MKK-D00ZB | BRACKET COMP., R. STEP *NHA86M* MAT BALLISTIC BLACK METALLIC | 1 | |
| 7 | 50617-KZ4-J40 | SPRING, R. STEP RETURN | 1 | |
| 8 | 50617-MKK-D00 | STEP COMP., R. | 1 | |
| 9 | 50618-KZ4-J40 | SPRING, L. STEP RETURN | 1 | |
| 10 | 50625-MKK-D00ZB | BRACKET COMP., L. STEP *NHA86M* MAT BALLISTIC BLACK METALLIC | 1 | |
| 11 | 50627-MKK-D00 | STEP COMP., L. | 1 | |
| 12 | 50661-MKK-D00 | RUBBER, MAIN STEP | 2 | |
| 13 | 50662-MKK-D00 | PLATE, STEP RUBBER SETTING | 2 | |
| 14 | 50707-MJP-G50 | GUARD, L. HEEL | 1 | |
| 15 | 50715-MKK-D00ZB | HOLDER, R. PILLION STEP *NHA86M* MAT BALLISTIC BLACK METALLIC | 1 | |
| 16 | 50716-MJP-G50 | GUARD, PILLION HEEL | 1 | |
| 17 | 50718-KT7-761 | PLATE, PILLION STEP CLICK | 2 | |
| 18 | 50720-KT7-761 | BAR, R. PILLION STEP | 1 | |
| 19 | 50725-MKK-D00ZB | HOLDER, L. PILLION STEP *NHA86M* MAT BALLISTIC BLACK METALLIC | 1 | |
| 20 | 50730-KT7-761 | BAR, L. PILLION STEP | 1 | |
| 21 | 90102-MW3-600 | BOLT, FLANGE, 6X10 | 2 | |
| 22 | 90114-MGE-D00 | BOLT, SPECIAL, 6X15 | 2 | |
| 23 | 90118-MJN-A00 | BOLT, SOCKET, 10X28 | 4 | |
| 25 | 90157-ME9-000 | BOLT, SOCKET, 8X22 | 4 | |
| 26 | 90551-178-000 | WASHER,SPL., 10MM | 1 | |
| 27 | 90656-MGH-641 | CLIP, BRUSH | 1 | |
| 28 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 29 | 94102-10000 | WASHER, PLAIN, 10MM | 2 | |
| 30 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 31 | 94201-20180 | PIN, SPLIT, 2.0X18 | 2 | |
| 32 | 96211-08000 | BALL STEEL 8 MM | 2 | |
