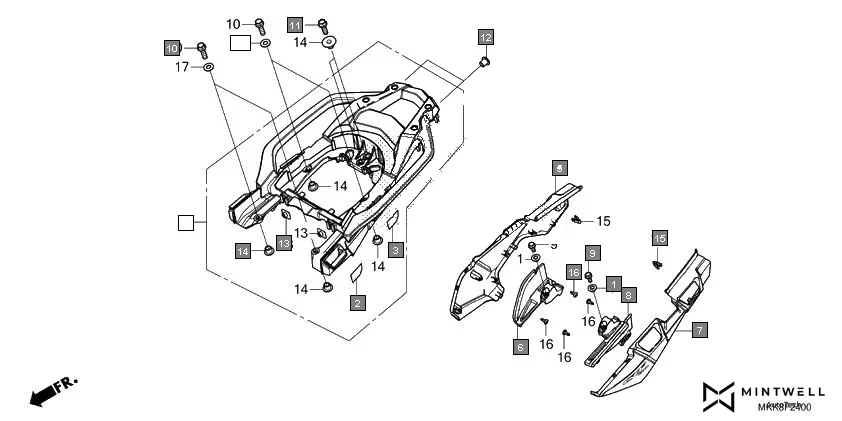

F-24 - SIDE COVER/REAR CARRIER
HONDA Africa Twin CRF1000DJ · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80118-MFJ-D00 | COLLAR, FENDER | 2 | |
| 2 | 81307-MJP-MF0 | FILM FR, GRIP PROTECTOR | 1 | |
| 3 | 81308-MJP-MF0 | FILM, RR. GRIP PROTECTOR | 1 | |
| 4 | 81310-MKK-ER0ZA | CARRIER ASSY. *NHB36M* MAT HORIZONTAL SILVER METALLIC | 1 | |
| 5 | 83610-MKK-D00ZA | COVER SET, R. SIDE(WL) *TYPE3* | 1 | |
| 6 | 83620-MJP-G50 | COVER, R. SIDE INNER | 1 | |
| 7 | 83710-MKK-D00ZA | COVER SET, L. SIDE(WL) *TYPE3* | 1 | |
| 8 | 83720-MJP-G50 | COVER, L. SIDE INNER | 1 | |
| 9 | 90030-GHB-630 | BOLT, FLANGE, 6X14 | 2 | |
| 10 | 90035-GHB-690 | BOLT, FLANGE, 8X28 | 4 | |
| 11 | 90036-GHB-670 | BOLT, FLANGE, 8X22 | 2 | |
| 12 | 90111-KW3-003 | NUT, COWL SETTING, 5MM | 2 | |
| 13 | 90303-HA0-680 | NUT, SPECIAL, 6X7 | 2 | |
| 14 | 90450-KG8-000 | COLLAR, 8MM | 6 | |
| 15 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 2 | |
| 16 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 17 | 94101-08800 | WASHER, PLAIN, 8MM | 4 | |
