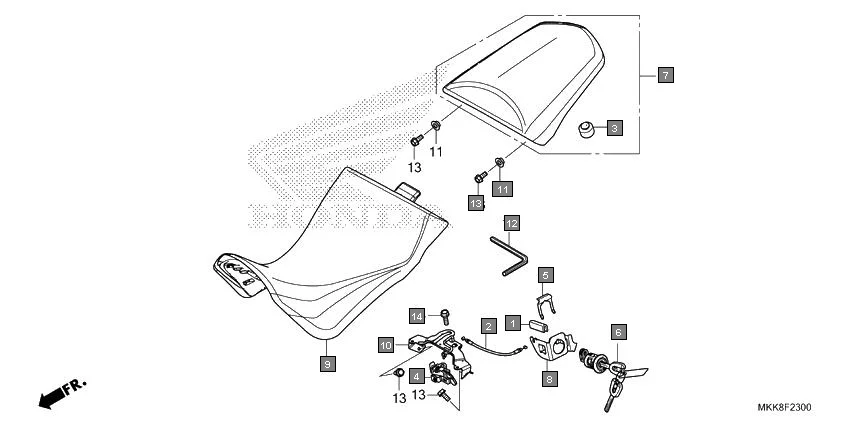

F-23 - SEAT
HONDA Africa Twin CRF1000DJ · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64122-MCZ-000 | RUBBER, PROTECTOR | 1 | |
| 2 | 77156-MKK-D01 | CABLE, SEAT LOCK | 1 | |
| 3 | 77206-GF0-000 | RUBBER, SEAT CUSHION | 4 | |
| 4 | 77220-MJF-A01 | HOOK, SEAT CATCH | 1 | |
| 5 | 77235-MJE-D00 | PLATE, LOCK KEY SETTING | 1 | |
| 6 | 77239-MJM-D62 | KEY, SEAT LOCK(WAVE) | 1 | |
| 7 | 77300-MJP-DA0ZA | SEAT COMP., PILLION *TYPE3* | 1 | |
| 8 | 77321-MJP-G50 | STAY, SEAT LOCK CABLE | 1 | |
| 9 | 77500-MJP-F50ZB | SEAT COMP., MAIN(LOW) *TYPE3* | 1 | |
| 10 | 77582-MJP-G50 | STAY COMP., SEAT CATCH | 1 | |
| 11 | 80118-MFJ-D00 | COLLAR, FENDER | 2 | |
| 12 | 89221-MGZ-J00 | WRENCH, HEX., 5MM | 1 | |
| 13 | 90030-GHB-630 | BOLT, FLANGE, 6X14 | 4 | |
| 14 | 90030-GHB-660 | BOLT, FLANGE, 6X20 | 1 | |
