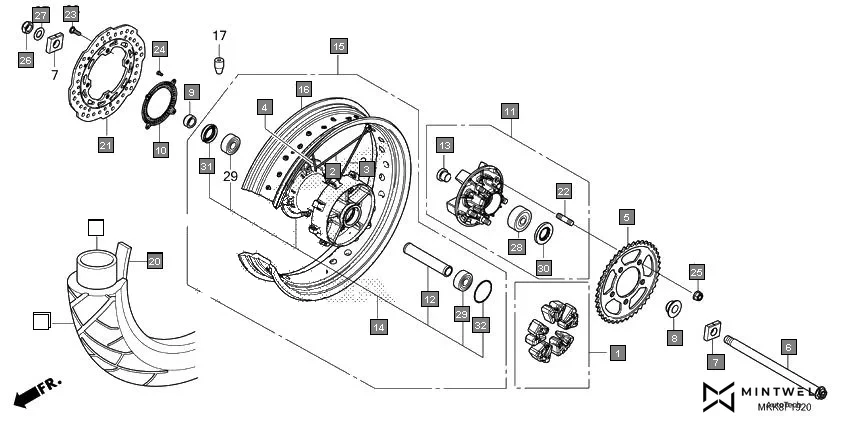

F-19-20 - REAR WHEEL
HONDA Africa Twin CRF1000DJ · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-MBB-000 | DAMPER SET, WHEEL | 1 | |
| 2 | 06420-MKK-D00 | SPOKE SET A, RR. (R. OUTSIDE) | 8 | |
| 3 | 06421-MKK-D00 | SPOKE SET B, RR. (L. SIDE) | 16 | |
| 4 | 06422-MKK-D00 | SPOKE SET C, RR. (R. INSIDE) | 8 | |
| 5 | 41201-MJP-G51 | SPROCKET, FINAL DRIVEN(42T) | 1 | |
| 6 | 42301-MJP-G50 | AXLE, RR. WHEEL | 1 | |
| 7 | 42305-MJP-G50 | COLLAR, RR. AXLE | 2 | |
| 8 | 42311-MJP-G50 | COLLAR, RR. WHEEL SIDE | 1 | |
| 9 | 42312-MGS-D30 | COLLAR, RR. BRAKE SIDE | 1 | |
| 10 | 42515-MJP-G60 | RING, RR. PULSER | 1 | |
| 11 | 42615-MJP-G51 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 12 | 42620-MJP-G50 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 13 | 42625-MJP-G50 | COLLAR B, RR. WHEEL DISTANCE | 1 | |
| 14 | 42635-MKK-D00 | HUB SUB ASSY., RR. | 1 | |
| 15 | 42650-MKK-D00 | WHEEL SUB ASSY., RR. | 1 | |
| 16 | 42701-MKK-D01 | RIM, RR. WHEEL(18M/CXMT4.00) | 1 | |
| 18 | 42711-MJP-DA1 | TIRE, RR.(DUNLOP) (150/70R18 M/C 70H) | 1 | |
| 18 | 42711-MKK-D02 | TIRE, RR.(BRIDGESTONE) (150/70R18M/C 70H) | 1 | |
| 19 | 42712-MGC-N22 | TUBE, TIRE(DUNLOP) | 1 | |
| 19 | 42712-MKK-D02 | TUBE, TIRE(BRIDGESTONE) | 1 | |
| 20 | 42713-MKK-D02 | FLAP, TIRE(BRIDGESTONE) | 1 | |
| 20 | 42713-MGC-N21 | FLAP, TIRE(DUNLOP) | 1 | |
| 21 | 43251-MJP-G51 | DISK, RR. BRAKE(YUTAKA) | 1 | |
| 22 | 90102-MAS-000 | BOLT, STUD, 12X25 | 5 | |
| 23 | 90105-MBB-000 | BOLT, BRAKE DISK, 8X24 | 4 | |
| 25 | 90306-KF0-003 | NUT, FLANGE, 12MM(FUSERASHI) | 5 | |
| 26 | 90306-MCS-G01 | NUT, U, 18MM | 1 | |
| 27 | 90401-KZ4-890 | WASHER, 18X32X2 | 1 | |
| 28 | 91051-MAS-003 | BEARING, RADIAL BALL, 63/22 | 1 | |
| 29 | 91053-MGS-D31 | BEARING, RADIAL BALL(6204)(UU) | 2 | |
| 30 | 91252-MAS-003 | DUST SEAL, 30X56X7.5 | 1 | |
| 31 | 91253-443-761 | DUST SEAL, 30X47X8(ARAI) | 1 | |
| 32 | 91351-MGS-D30 | O-RING, 55X2 | 1 | |
