F-1 - HEADLIGHT

HONDA Africa Twin CRF1000DJ · 8 parts

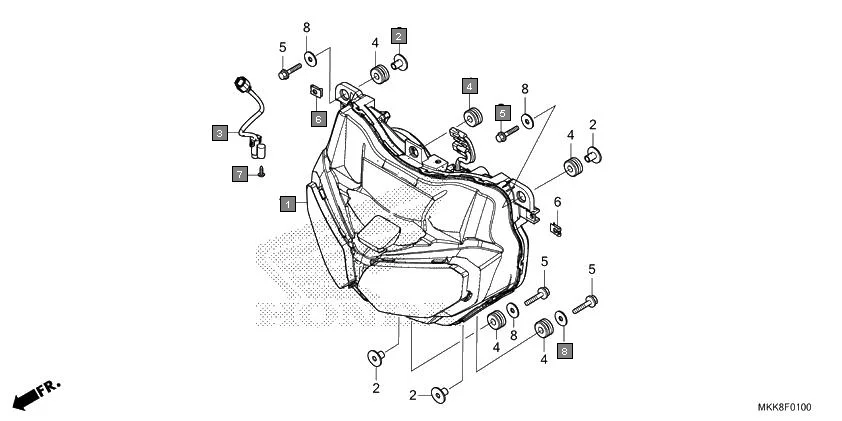

F-1 HEADLIGHT assembly diagram for HONDA Africa Twin CRF1000DJ

Parts in This Assembly (8)

Ref # Part Number Description Qty
1 33100-MJP-G52 HEADLIGHT ASSY. 1
2 33111-MGH-640 COLLAR 4
3 37880-MJP-G51 SENSOR, OPEN AIR TEMPERATURE 1
4 61103-MJP-G50 RUBBER, HEADLIGHT 5
5 90020-GHB-680 BOLT, FLANGE, 6X25 4
6 90677-KAN-961 NUT CLIP 5MM 2
7 93903-24280 SCREW, TAPPING, 4X10 1
8 94103-06000 WASHER PLAIN,6MM 4
