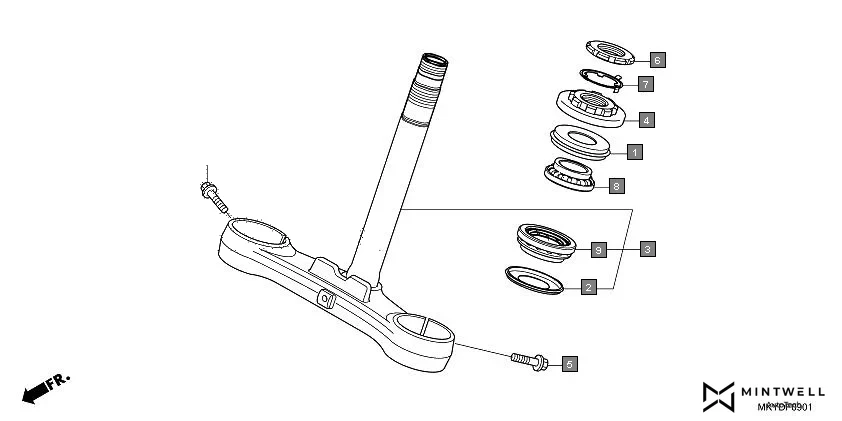

F-9-1 - STEERING STEM(CBR650RA)
HONDA CBR650R CBR650RAN · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53213-MB4-771 | DUST SEAL, STEERING UPPER (ARAI) | 1 | |
| 2 | 53214-371-010 | DUST SEAL, STEERING HEAD | 1 | |
| 3 | 53219-MKN-D10 | STEM SUB ASSY., STEERING | 1 | |
| 4 | 53220-K87-A00 | THREAD COMP., STEERING HEAD TOP | 1 | |
| 5 | 90041-GHB-740 | BOLT, FLANGE, 10X40 | 2 | |
| 6 | 90302-425-830 | THREAD B, STEERING HEAD TOP | 1 | |
| 7 | 90506-425-830 | WASHER, LOCK | 1 | |
| 8 | 91015-KT8-005 | BEARING, HEAD PIPE UPPER(KOYO) | 1 | |
| 9 | 91016-KT8-005 | BEARING, HEAD PIPE UNDER(KOYO) | 1 | |
