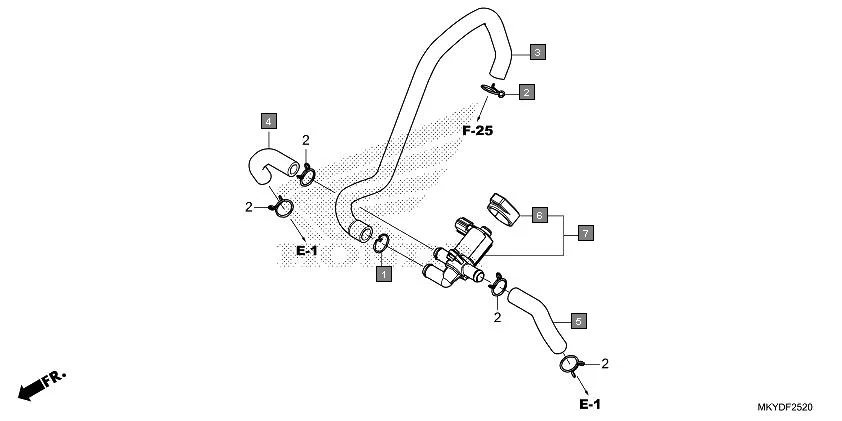

F-25-20 - AIR INJECTION CONTROL VALVE
HONDA CBR650R CBR650RAN · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17366-MJ0-000 | CLIP B, TUBE | 1 | |
| 2 | 17724-102-700 | CLIP, SUB TANK HOSE | 5 | |
| 3 | 18651-MKN-D50 | TUBE(AISV-AIR CLEANER) | 1 | |
| 4 | 18653-MKN-D50 | TUBE, R. AIR INJECTION CONTROL VALVE | 1 | |
| 5 | 18654-MKN-D50 | TUBE, L. AIR INJECTION CONTROL VALVE | 1 | |
| 6 | 36172-MKN-D51 | SUSPENSION, SOLENOID VALVE | 1 | |
| 7 | 36450-MKN-D52 | VALVE ASSY., EX. AIR INJECTION | 1 | |
