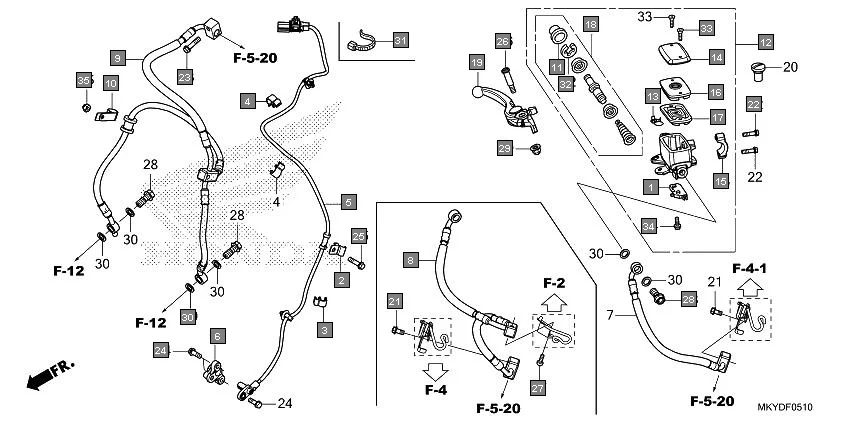

F-5-10 - FRONT BRAKE MASTER CYLINDER
HONDA CBR650R CBR650RAN · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-MGS-D31 | SWITCH ASSY., FR. STOP | 1 | |
| 2 | 38514-MKH-D00 | CLAMPER B, SENSOR CORD | 1 | |
| 3 | 38516-MGE-003 | CLAMP, ABS CORD(D8.5) | 1 | |
| 4 | 38517-MGE-003 | CLAMP, ABS CORD(D12) | 2 | |
| 5 | 38520-MKN-D51 | SENSOR, FR. WHEEL SPEED | 1 | |
| 6 | 38521-MKN-D50 | GUARD, ABS SENSOR | 1 | |
| 8 | 45124-MKY-D51 | HOSE COMP. A, FR. BRAKE | 1 | |
| 9 | 45127-MKN-D51 | HOSE COMP. D, FR. BRAKE | 1 | |
| 10 | 45132-MKN-D50 | CLAMPER, FR. BRAKE HOSE | 1 | |
| 11 | 45504-410-003 | BOOT COMP. | 1 | |
| 12 | 45510-MGH-641 | CYLINDER SUB ASSY., FR. BRAKE MASTER(NISSIN) | 1 | |
| 13 | 45512-MA6-006 | PROTECTOR | 1 | |
| 14 | 45513-MM5-016 | CAP, MASTER CYLINDER(NISSIN) | 1 | |
| 15 | 45517-166-006 | HOLDER, MASTER CYLINDER | 1 | |
| 16 | 45518-MM5-006 | PLATE, DIAPHRAGM | 1 | |
| 17 | 45520-MM5-006 | DIAPHRAGM | 1 | |
| 18 | 45530-MA4-671 | CYLINDER SET, MASTER | 1 | |
| 19 | 53170-MJE-D01 | LEVER ASSY., R. HANDLE | 1 | |
| 21 | 90013-GHB-610 | BOLT, FLANGE, 6X12 | 1 | |
| 22 | 90013-GHB-660 | BOLT, FLANGE, 6X22 | 2 | |
| 23 | 90013-GHB-670 | BOLT, FLANGE, 6X25 | 1 | |
| 24 | 90111-MKN-D50 | BOLT, FLANGE, 6X16 | 3 | |
| 25 | 90113-MKN-D50 | BOLT, FLANGE, 6X23.5 | 1 | |
| 26 | 90114-MA5-671 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 27 | 90125-MKN-D50 | SCREW, PAN, 6X14 | 1 | |
| 28 | 90145-MS9-612 | BOLT, OIL, 10X22(SAGA) | 3 | |
| 29 | 90202-KCW-870 | NUT, CAP, 6MM | 1 | |
| 30 | 90545-300-000 | WASHER ,OIL BOLT | 6 | |
| 31 | 90650-KV6-003 | BAND, WIRE, 95MM | 1 | |
| 32 | 90651-MA5-671 | CIRCLIP | 1 | |
| 33 | 93600-04012-1G | SCREW, FLAT, 4X12 | 2 | |
| 34 | 93893-04012-17 | SCREW-WASHER, 4X12 | 1 | |
| 35 | 94021-06070-0S | NUT, CAP, 6MM | 1 | |
