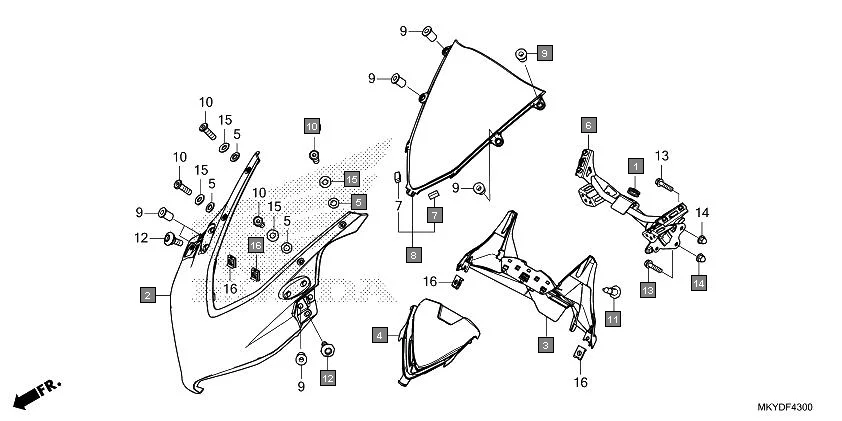

F-43 - UPPER COWL
HONDA CBR650R CBR650RAN · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11344-MB0-000 | GROMMET A, REAR COVER | 1 | |
| 2 | 64110-MKY-D30ZB | COWL SET, FR. UPPER(WL) *TYPE1* | 1 | |
| 2 | 64111-MKN-D10ZH | COWL, FR. UPPER(WOL) *NHB01* GRAPHITE BLACK | 1 | |
| 3 | 64171-MKN-D10 | PANEL, METER | 1 | |
| 4 | 64172-MKN-D10 | VISOR, METER | 1 | |
| 5 | 64205-166-610 | WASHER, SCREEN SETTING | 4 | |
| 6 | 64501-MKN-D10 | STAY COMP., FR. UPPER COWL | 1 | |
| 7 | 67105-MKN-D10 | SPONGE, SCREEN | 2 | |
| 8 | 67110-MKN-D10ZA | WINDSCREEN SET(WL) *TYPE1* | 1 | |
| 9 | 90111-KW3-003 | NUT, COWL SETTING, 5MM | 8 | |
| 13 | 90164-GHB-690 | BOLT, FLANGE, 8X32 | 2 | |
| 14 | 90307-MJE-D00 | NUT, HEX. CAP, 8MM | 2 | |
| 15 | 90504-964-000 | WASHER, THRUST, 5MM | 4 | |
