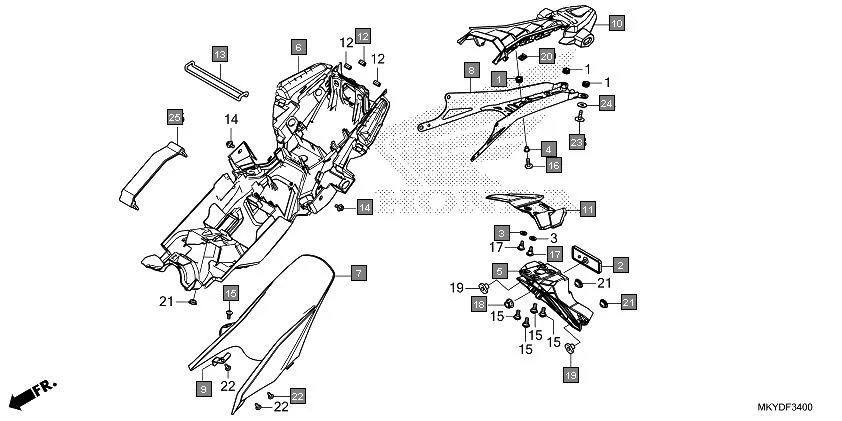

F-34 - REAR FENDER
HONDA CBR650R CBR650RAN · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19639-MKY-D50 | RUBBER, MOUNT | 3 | |
| 2 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 61106-KW6-840 | RUBBER B, MOUNTING | 2 | |
| 4 | 80101-MFJ-D00 | COLLAR, RR. FENDER (L.RR.) | 1 | |
| 5 | 80101-MKY-S10 | FENDER A, RR. | 1 | |
| 6 | 80102-MKY-D50 | FENDER B, RR. | 1 | |
| 7 | 80103-MKN-D50 | FENDER C, RR. | 1 | |
| 8 | 80103-MKY-D50 | STAY COMP., RR. FENDER | 1 | |
| 9 | 80106-MKN-D50 | STAY, RR. FENDER C | 1 | |
| 10 | 80150-MKY-D50ZA | COVER SET, RR. FENDER STAY UPPER(WL) *TYPE1* | 1 | |
| 11 | 80161-MKY-D50 | COVER, RR. FENDER STAY LOWER | 1 | |
| 12 | 83515-KPH-700 | RUBBER, TAIL COVER | 3 | |
| 13 | 89012-KZL-930 | BAND, TOOL | 1 | |
| 14 | 90116-ME9-000 | BOLT,FLANGE, 6MM | 2 | |
| 15 | 90127-MKN-D50 | SCREW, SPECIAL, 6X14 | 5 | |
| 16 | 90133-MKN-D50 | SCREW, PAN, 5X16 | 1 | |
| 17 | 90134-MKY-D50 | SCREW, PAN, 5X14 | 2 | |
| 18 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 19 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 20 | 90677-KAN-T00 | NUT, CLIP, 5MM | 1 | |
| 21 | 90852-KPP-T00 | PLUG, HOLE | 4 | |
| 22 | 93903-24380 | SCREW TAPPING, 4 X 12 | 3 | |
| 23 | 93903-24480 | SCREW, TAPPING, 4X16 | 2 | |
| 24 | 94103-04700 | WASHER, PLAIN, 4MM | 2 | |
| 25 | 95012-13001 | BAND B2, BATTERY(120MM) | 1 | |
