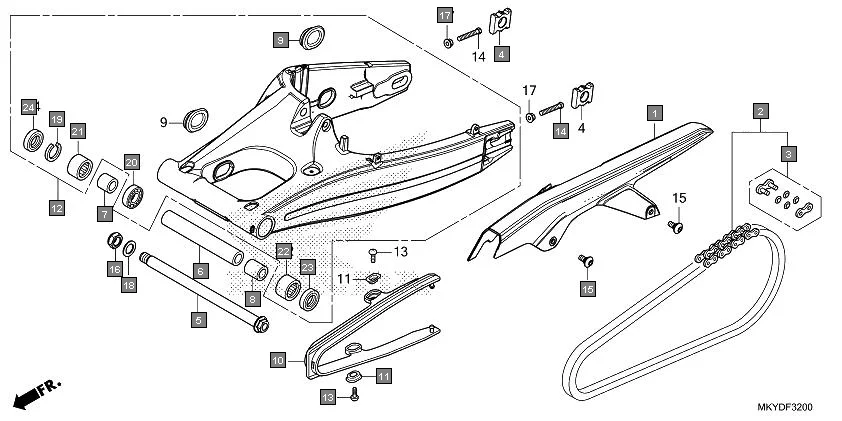

F-32-SWINGARM
HONDACBR650R CBR650RAN · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40511-MJE-D00 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40540-MJE-D01 | CHAIN, DRIVE(DID525V11-120ZB) (STANDARD LINK 118L) | 1 | |
| 2 | 40540-MJE-D02 | CHAIN, DRIVE(RK525KRW-120LJFZ)(STANDARD LINK 118L) | 1 | |
| 3 | 40545-MJE-D01 | JOINT, DRIVE CHAIN(DAIDO) | 1 | |
| 3 | 40545-MJE-D02 | JOINT, DRIVE CHAIN(RK) | 1 | |
| 4 | 42305-MJE-D00 | COLLAR, RR. AXLE | 2 | |
| 5 | 52101-MKN-D50 | BOLT, SWINGARM PIVOT | 1 | |
| 6 | 52141-MJE-D00 | COLLAR, CENTER PIVOT DISTANCE | 1 | |
| 7 | 52142-MJE-D00 | COLLAR, R. PIVOT DISTANCE | 1 | |
| 8 | 52143-MJE-D00 | COLLAR, L. PIVOT DISTANCE | 1 | |
| 9 | 52161-KZZ-900 | CAP, RR. SWINGARM | 4 | |
| 10 | 52170-MJE-D00 | SLIDER, CHAIN | 1 | |
| 11 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 | |
| 12 | 52200-MKN-D50 | SWINGARM SUB ASSY., RR. | 1 | |
| 13 | 90104-KPP-900 | SCREW, PAN, 5X12 | 2 | |
| 14 | 90106-MCF-D00 | BOLT, HEX., 8X50 | 2 | |
| 15 | 90127-MKN-D50 | SCREW, SPECIAL, 6X14 | 2 | |
| 16 | 90305-MJE-D01 | NUT, U, 18MM | 1 | |
| 17 | 90309-357-000 | NUT, HEX .,8MM | 2 | |
| 18 | 90401-KZ4-890 | WASHER, 18X32X2 | 1 | |
| 19 | 90651-MEW-920 | CIRCLIP, INTERNAL(37) | 1 | |
| 20 | 91054-MGS-D31 | BEARING, RADIAL BALL, 20X37X9 | 1 | |
| 21 | 91055-MGS-D31 | BEARING, NEEDLE, 30X37X20 | 1 | |
| 22 | 91071-MR7-003 | BEARING, NEEDLE | 1 | |
| 23 | 91202-MR7-003 | DUST SEAL, 28X37X4 | 1 | |
| 24 | 91253-KZ3-861 | DUST SEAL, 30X37X4 | 1 |
