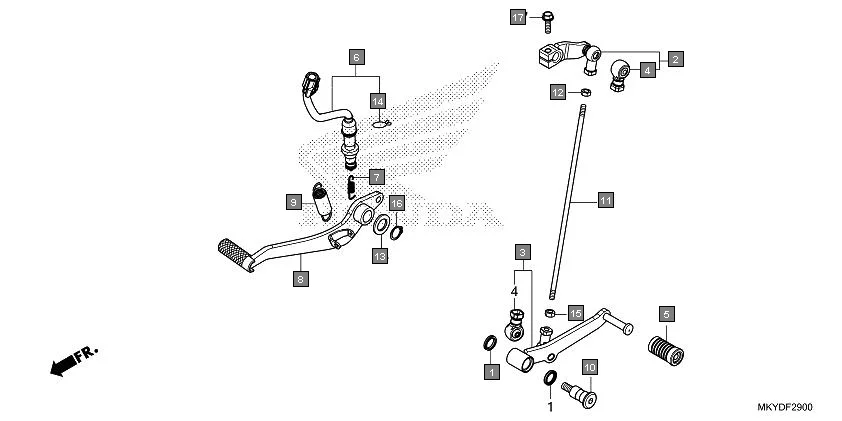

F-29 - PEDAL
HONDA CBR650R CBR650RAN · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24706-MK3-770 | RUBBER, DUST SEAL | 2 | |
| 2 | 24710-MKN-D50 | ARM COMP., GEAR CHANGE | 1 | |
| 3 | 24720-MKN-D50 | PEDAL COMP., GEAR CHANGE | 1 | |
| 4 | 24724-MBW-D21 | COVER, DUST | 2 | |
| 5 | 24781-KSP-860 | RUBBER, CHANGE PEDAL | 1 | |
| 6 | 35350-MKY-D51 | SWITCH ASSY., RR. STOP | 1 | |
| 7 | 35357-HP0-A00 | SPRING, STOP SWITCH | 1 | |
| 8 | 46500-MJE-D00 | PEDAL COMP., BRAKE | 1 | |
| 9 | 46513-KYJ-900 | SPRING ASSY., BRAKE PEDAL | 1 | |
| 10 | 90113-MGZ-J00 | BOLT, CHANGE PIVOT | 1 | |
| 11 | 90165-MGZ-J00 | BOLT, TIE ROD | 1 | |
| 12 | 90301-MGZ-J00 | NUT, SPECIAL, 6MM (LEFT HAND THREAD) | 1 | |
| 13 | 90557-230-000 | WASHER, 15.2X25 | 1 | |
| 14 | 90651-MGE-641 | CLIP, SWITCH COVER | 1 | |
| 15 | 94001-06070-0S | NUT, HEX., 6 MM | 1 | |
| 16 | 94511-15000 | CIRCLIP, EXTERNAL, 15MM | 1 | |
| 17 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
