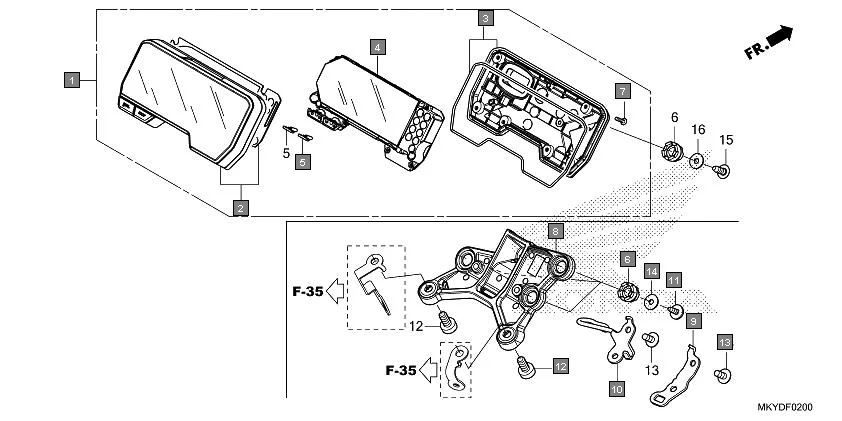

F-2 - METER
HONDA CBR650R CBR650RAN · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-MKY-D51 | METER ASSY., COMBINATION (KPH/MPH) | 1 | |
| 2 | 37110-MKN-D51 | CASE ASSY., UPPER | 1 | |
| 3 | 37120-MKN-D52 | CASE ASSY., UNDER | 1 | |
| 4 | 37130-MKY-D51 | METER COMP., LCD(KPH/MPH) | 1 | |
| 5 | 37205-MKN-D51 | KEY, TOP | 2 | |
| 6 | 37215-KZZ-D20 | RUBBER, METER SETTING | 3 | |
| 7 | 37605-MKH-D01 | SCREW, TAPPING, 3X14 | 7 | |
| 8 | 61312-MKN-D50ZA | STAY, METER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 9 | 64216-MKY-D50 | STAY, HARNESS CLIP | 1 | |
| 10 | 64217-MKY-D50 | GUIDE COMP., CABLE | 1 | |
| 11 | 90102-MKH-D00 | SCREW, SPECIAL TAPPING, 5X14 | 3 | |
| 12 | 90116-MJE-D00 | BOLT, SOCKET, 8X18 | 2 | |
| 13 | 90125-MKN-D50 | SCREW, PAN, 6X14 | 2 | |
| 14 | 90504-MKN-D50 | WASHER, PLAIN, 5MM | 3 | |
