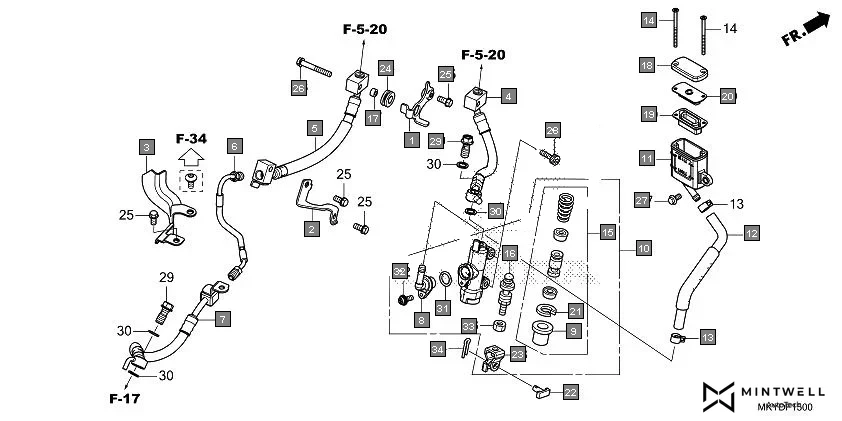

F-15 - REAR BRAKE MASTER CYLINDER
HONDA CBR650R CBR650RAN · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43160-MKN-D50 | STAY A, RR. BRAKE | 1 | |
| 2 | 43161-MKN-D50 | STAY B, RR. BRAKE | 1 | |
| 3 | 43162-MKN-D50 | STAY C, RR. BRAKE | 1 | |
| 4 | 43310-MKN-D51 | HOSE COMP. A, RR. BRAKE | 1 | |
| 5 | 43313-MKY-D51 | HOSE COMP. D, RR. BRAKE | 1 | |
| 6 | 43314-MKN-D50 | PIPE COMP. E, RR. BRAKE | 1 | |
| 7 | 43315-MKN-D51 | HOSE COMP. F, RR. BRAKE | 1 | |
| 8 | 43503-MR7-006 | CONNECTOR | 1 | |
| 9 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 10 | 43510-MKN-D51 | CYLINDER SUB ASSY., RR. BRAKE MASTER(NISSIN) | 1 | |
| 11 | 43511-K31-601 | CUP COMP., OIL | 1 | |
| 12 | 43512-MKN-D51 | HOSE COMP., RR. BRAKE MASTER CYLINDER | 1 | |
| 13 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 14 | 43516-MKY-D51 | SCREW, FLAT, 4X56 | 2 | |
| 15 | 43520-MB2-315 | PISTON SET, MASTER CYLINDER (NISSIN) | 1 | |
| 16 | 43530-KV3-701 | ROD COMP., PUSH | 1 | |
| 17 | 45161-K87-L50 | COLLAR, BRAKE HOSE STAY | 1 | |
| 18 | 45513-K33-D01 | CAP, MASTER CYLINDER | 1 | |
| 19 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 20 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 21 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 22 | 46503-MFG-D00 | PIN COMP., BRAKE ROD | 1 | |
| 23 | 46504-MAL-601 | JOINT, BRAKE ROD | 1 | |
| 24 | 64312-KWW-640 | GROMMET, MAIN PIPE COVER | 1 | |
| 25 | 90013-GHB-620 | BOLT, FLANGE, 6X14 | 4 | |
| 26 | 90013-GHB-710 | BOLT, FLANGE, 6X40 | 1 | |
| 27 | 90017-GHB-620 | BOLT, FLANGE, 6X14(NSHF) | 1 | |
| 28 | 90135-MEL-000 | BOLT, SOCKET, 6X20 | 2 | |
| 31 | 91212-422-006 | O RING | 1 | |
| 33 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 34 | 94201-20120 | PIN, SPLIT, 2.0X12 | 1 | |
