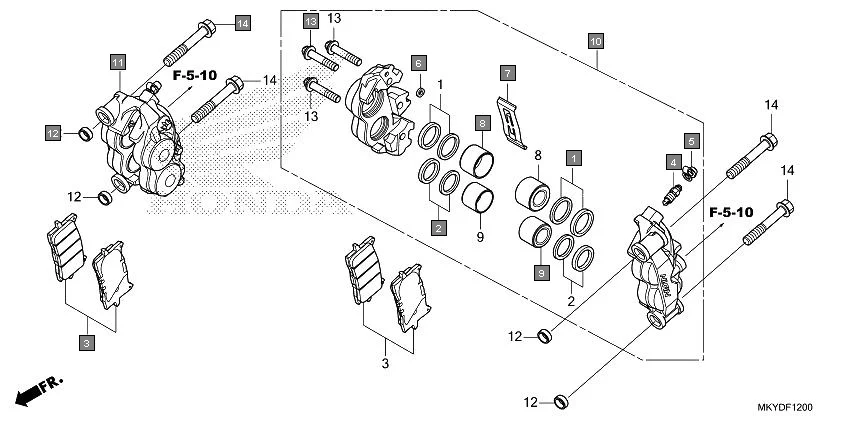

F-12 - FRONT BRAKE CALIPER
HONDA CBR650R CBR650RAN · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-MCZ-006 | SEAL SET, PISTON | 4 | |
| 2 | 06452-MCZ-006 | SEAL SET, PISTON | 4 | |
| 3 | 06455-MKN-D51 | PAD SET, FR. | 2 | |
| 4 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 2 | |
| 5 | 43353-461-771 | CAP, BLEEDER | 2 | |
| 6 | 45103-MR7-006 | SEAL, JOINT | 2 | |
| 7 | 45106-MJP-G51 | SPRING, PAD | 2 | |
| 8 | 45107-MJP-G52 | PISTON A | 4 | |
| 9 | 45117-MJP-G52 | PISTON B | 4 | |
| 10 | 45150-MJP-G52 | CALIPER SUB ASSY., L. FR. (NISSIN) | 1 | |
| 11 | 45250-MJP-G52 | CALIPER SUB ASSY., R. FR. (NISSIN) | 1 | |
| 12 | 51497-MKN-D50 | SPACER, FR. FORK | 4 | |
| 13 | 90104-MJP-G51 | BOLT, TORX, 8X38 | 6 | |
| 14 | 90123-MJP-G50 | BOLT, FLANGE, 10X57 | 4 | |
