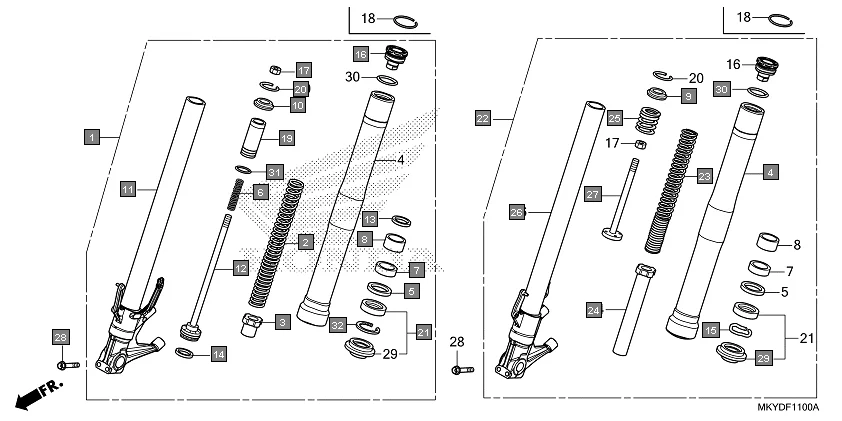

F-11 - FRONT FORK
HONDA CBR650R CBR650RAN · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-MKY-D51 | FORK ASSY., R. FR. | 1 | |
| 2 | 51401-MKY-D51 | SPRING, R. FR. | 1 | |
| 3 | 51402-MKY-D51 | COLLAR COMP., R. SPRING | 1 | |
| 4 | 51410-MKN-D51 | TUBE, OUTER | 2 | |
| 5 | 51412-MB4-003 | RING, BACK UP(SHOWA) | 2 | |
| 6 | 51412-MKY-D51 | SPRING, R. REBOUND | 1 | |
| 7 | 51414-MFJ-A51 | BUSH, GUIDE | 2 | |
| 8 | 51415-MFJ-A51 | BUSH, SLIDER | 2 | |
| 9 | 51419-K94-T01 | SEAT, STOPPER | 1 | |
| 10 | 51419-MKY-D51 | SEAT, R. STOPPER | 1 | |
| 11 | 51425-MKY-D51 | PIPE COMP., R. SLIDE | 1 | |
| 12 | 51426-MKY-D51 | ROD COMP., PISTON | 1 | |
| 13 | 51435-MKY-D51 | RING B, PISTON | 1 | |
| 14 | 51437-MKY-D51 | RING, PISTON | 1 | |
| 15 | 51447-KA4-711 | RING, OIL SEAL STOPPER(SHOWA) | 1 | |
| 16 | 51450-MKY-D51 | BOLT COMP., FR. FORK | 2 | |
| 17 | 51451-MKY-D51 | NUT, HEX. | 2 | |
| 19 | 51455-MKY-D51 | CASE COMP., ROD GUIDE | 1 | |
| 20 | 51456-K94-T01 | RING, STOPPER | 2 | |
| 21 | 51490-MKL-D81 | SEAL SET, FR. FORK | 2 | |
| 22 | 51500-MKY-D51 | FORK ASSY., L. FR. | 1 | |
| 23 | 51501-MKY-D51 | SPRING, L. FR. FORK | 1 | |
| 24 | 51502-MKN-D51 | COLLAR COMP. B, SPRING(SHOWA) | 1 | |
| 25 | 51512-MKY-D51 | SPRING, L. REBOUND | 1 | |
| 26 | 51525-MKY-D51 | PIPE COMP., L. SLIDE | 1 | |
| 27 | 51526-MKY-D51 | ROD COMP. | 1 | |
| 28 | 90134-MEL-000 | BOLT, 8X45 | 4 | |
| 29 | 91251-MKL-D81 | SEAL, DUST (SHOWA) | 2 | |
| 30 | 91258-MEE-D01 | O-RING, 39.7X2.4 | 2 | |
| 31 | 91356-KF0-003 | O-RING, 33.2X2.4 | 1 | |
| 32 | 51447-MB4-003 | CIRCLIP, INTERNAL | 1 | |
