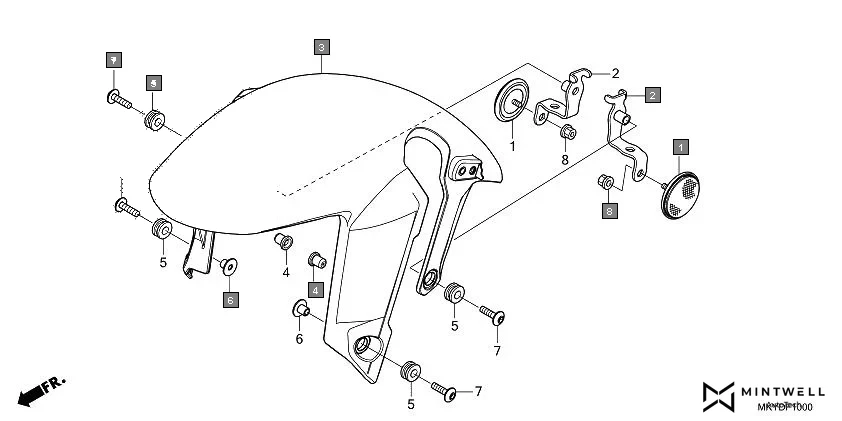

F-10 - FRONT FENDER
HONDA CBR650R CBR650RAN · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61105-MKN-D50 | STAY, FR. REFLECTOR | 2 | |
| 3 | 61110-MKN-D50ZC | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 3 | 61110-MKY-D50ZD | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 4 | 61312-149-300 | BOOT, HEADLIGHT BRACKET | 2 | |
| 5 | 80101-165-000 | RUBBER, RR. FENDER CUSHION | 4 | |
| 6 | 84706-163-670 | COLLAR TAIL LIGHT MTG | 2 | |
| 7 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 4 | |
| 8 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
