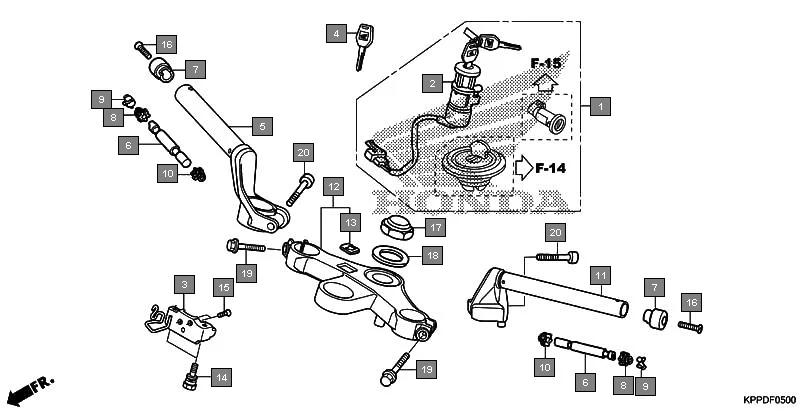

F-5 - HANDLE PIPE/TOP BRIDGE
HONDA CBR150R CBR150RG · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-KPP-N00 | KEY SET | 1 | |
| 2 | 35100-KPP-N01 | SWITCH ASSY., COMBINATION & LOCK | 1 | |
| 3 | 35105-KPP-T00 | STAY COMP., COMBINATION SWITCH | 1 | |
| 4 | 35121-KPP-N01 | KEY, BLANK | 1 | |
| 5 | 53100-KPP-T00 | PIPE COMP., R. STEERING HANDLE | 1 | |
| 6 | 53104-KPP-900 | WEIGHT B, HANDLE | 2 | |
| 7 | 53105-KPP-860 | WEIGHT A STRG HNDL | 2 | |
| 8 | 53107-MJ0-000 | RUBBER B, HANDLE WEIGHT | 2 | |
| 9 | 53108-MJ0-000 | SNAPRING, HNDL. WT | 2 | |
| 10 | 53109-MV4-000 | RUBBER B, HANDLE WEIGHT | 2 | |
| 11 | 53150-KPP-T00 | PIPE COMP., L. STEERING HANDLE | 1 | |
| 12 | 53300-KPP-N00ZA | BRIDGE COMP., FORK TOP *NH105* MAT BLACK(#15-#20) | 1 | |
| 13 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 14 | 90107-KPP-N00 | BOLT, BREAK OFF | 2 | |
| 15 | 90164-028-000 | SCREW, U-LOCK FLAT, 6X12 | 2 | |
| 16 | 90191-KPH-970 | SCREW OVAL 6X65 | 2 | |
| 17 | 90304-KSP-900 | NUT, STEERING STEM | 1 | |
| 18 | 90503-KSP-900 | WASHER, STEERING STEM | 1 | |
| 19 | 95701-08040-00 | BOLT, FLANGE, 8 X 40 | 2 | |
| 19 | 95702-08040-00 | BOLT, FLANGE, 8X40 | 2 | |
| 20 | 96600-08032-00 | BOLT FLANGE, 8 X 32 | 2 | |
